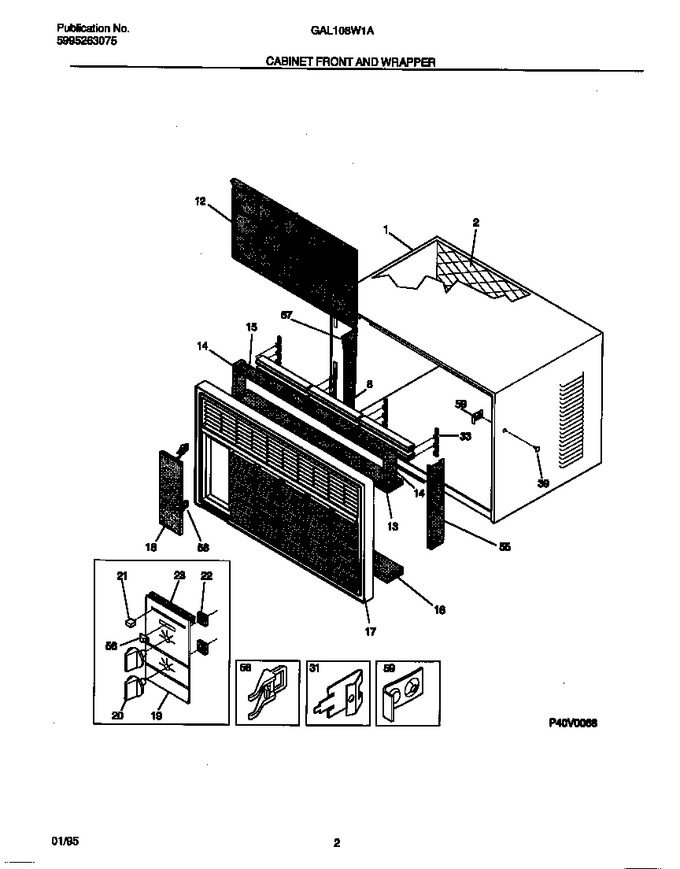

02 - Cabinet Parts


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303301242		Wrapper		Appelez-nous	-
2	5303303597		Panel-rear		Appelez-nous	-
8	3018412		Louver		Appelez-nous	-
12	3018657		Filter		Appelez-nous	-
13	3018550		Seal-mullion		Appelez-nous	-
14	5303207203		Seal-sides		Appelez-nous	-
15	3018407		Seal-frame		Appelez-nous	-
16	5303278925		Seal-bottom		Appelez-nous	-
18	5303272483		Door-front		Appelez-nous	-
19	5303307742		Dial Plate		Appelez-nous	-
20	5303017300		Knob-control, (2)		Appelez-nous	-
21	5303017340		Knob - Slide		Appelez-nous	-
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
23	5303001984		Seal - Dial Plate		Appelez-nous	-
31	5303295272		Clip-front, (2)		Appelez-nous	-
33	5303017319		Retainer-louver		Appelez-nous	-
39	5303271346		Screw-front		Appelez-nous	-
55	3018548		Rail-filter, Rh		Appelez-nous	-
56	3017341		Knob - Slide, Switch		Appelez-nous	-
57	3018547		Rail-filter, Lh		Appelez-nous	-
58	5303017980		Hinge - Door		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
17A	5303272481		Front Complete		Appelez-nous	-
17B	5303272482		Frame-front (not Illustrated)		Appelez-nous	-
