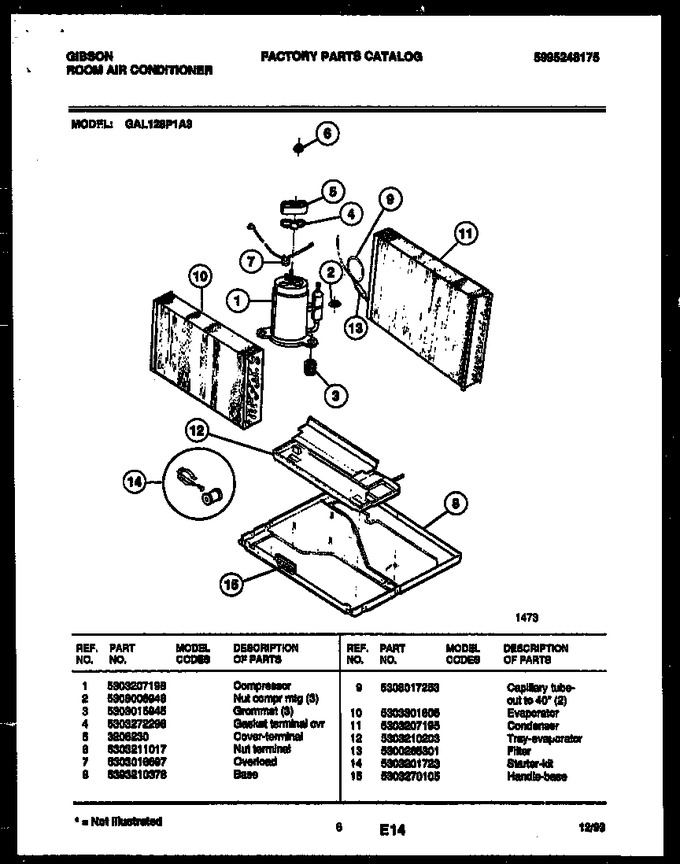

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207198 | Compressor |
|
- | |||||
| 2 | 5308006948 | Nut, Compr. Mtg. (3) |
|
- | |||||
| 3 | 5303015945 | Grommet (3) |
|
- | |||||
| 4 | 5303272298 | Gasket Terminal Cvr |
|
- | |||||
| 5 | 3206230 | Cover-terminal |
|
- | |||||
| 6 | 5303211017 | Nut-terminal |
|
- | |||||
| 7 | 5303016697 | Overload |
|
- | |||||
| 8 | 5393210378 | Base |
|
- | |||||
| 9 | 5308017253 | Capillary Tube (cut To 40``) (2) |
|
- | |||||
| 10 | 5303301805 | Evaporator |
|
- | |||||
| 11 | 5303207195 | Condenser |
|
- | |||||
| 12 | 5303210203 | Tray-evaporator |
|
- | |||||
| 13 | 5300265301 | Filter |
|
$ 284.30 | |||||
| 14 | 5303201723 | Starter Kit |
|
- | |||||
| 15 | 5303270105 | Handle-base |
|
- |
