01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

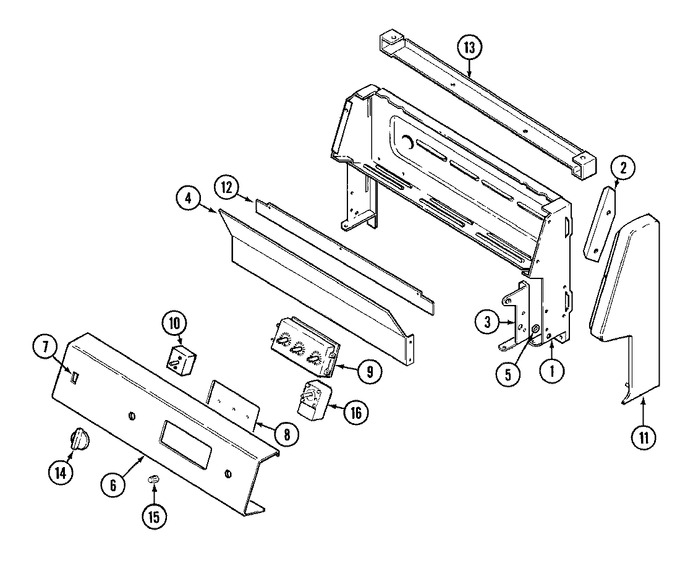

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F448-45 | Cover, Wire | 10 |
|
- | ||||
| 1 | 74002162 | Housing, Control Panel | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 3807F450-45 | Support, Control Pnl (lt) | 10 |
|
- | ||||
| 2 | 3807F449-45 | Support, Control Pnl (rt) | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 3418D098-60 | Hinge, Main Top (rt) | 10 |
|
- | ||||
| 3 | 8114P348-60 | Cover, Hinge Support | 10 |
|
- | ||||
| 3 | 3418D097-60 | Hinge, Main Top (lt) | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 3604F188-09 | Shield, Flue | 10 |
|
- | ||||
| 5 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 6 | 74002484 | Panel, Control (blk) | 10 |
|
- | ||||
| 6 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 7 | 7718P009-60 | Plug, Hole | 10 |
|
- | ||||
| 8 | 7201P056-60 | Gasket | 10 |
|
- | ||||
| 8 | 7902P109-60 | Glass, Clock | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74001560 | Clock (blk) | 10 |
|
- | ||||
| 10 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 10 | 7403P236-60 | Switch, Selector | 10 |
|
- | ||||
| 11 | 7726P051-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 11 | 7726P052-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 12 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 4001F064-51 | Extension, Control Panel | 10 |
|
- | ||||
| 13 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 7731P082-60 | Knob, Therm/burner (blk) | 10 |
|
- | ||||
| 15 | 7711P466-60 | Knob, Clock | 10 |
|
$ 14.72 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 16 | 7404P102-60 | Thermostat | 10 |
|
- |
