SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

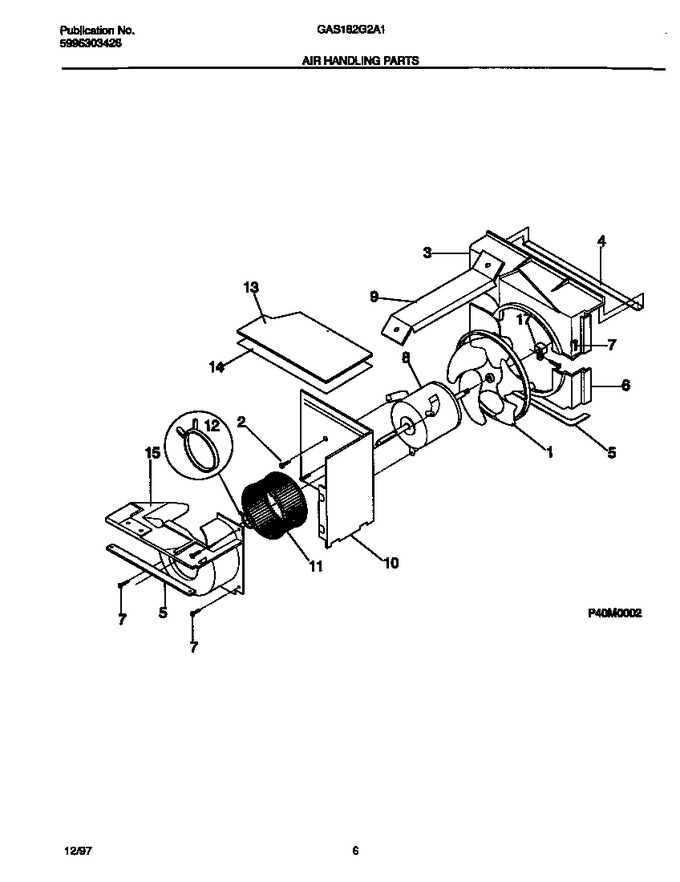

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303321440 | Fan Blade & Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 5303015305 | Housing-fan, Upper |
|
- | |||||
| 4 | 3016696 | Seal - Shroud Upper |
|
- | |||||
| 5 | 5303015311 | Seal - Scroll, Shroud |
|
- | |||||
| 6 | 5303015304 | Housing-fan,lower |
|
- | |||||
| 7 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 8 | 5303017557 | Motor - Fan |
|
- | |||||
| 9 | 5303015306 | Bracket |
|
- | |||||
| 10 | 5303295275 | Partition - Air System |
|
- | |||||
| 11 | 5303016832 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 13 | 5303015313 | Cover - Top |
|
- | |||||
| 14 | 3015314 | Insulation - Top Cover |
|
- | |||||
| 15 | 5303302723 | Scroll |
|
- |
