02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

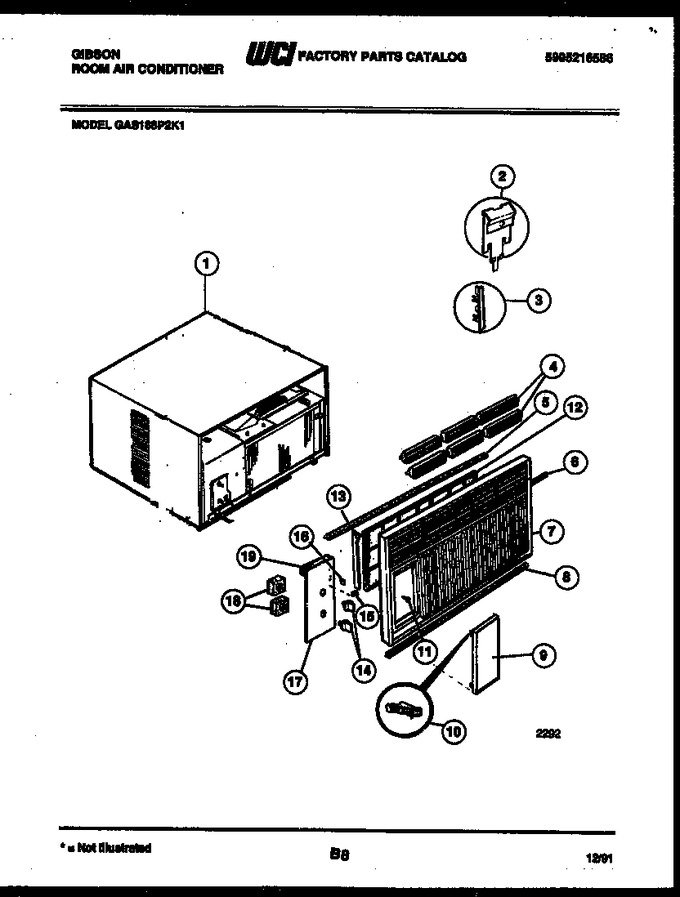

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 3200447 | Clip |
|
- | |||||
| 3 | 3017303 | Retainer Louver |
|
- | |||||
| 4 | 3017302 | Louver |
|
- | |||||
| 5 | 5303271831 | Seal Top & Side |
|
- | |||||
| 6 | 3017299 | Seal Mullion |
|
- | |||||
| 7 | 5303212503 | Front Complete |
|
- | |||||
| 8 | 5303281623 | Seal-btm |
|
- | |||||
| 9 | 5303270308 | Door |
|
- | |||||
| 10 | 5303017980 | Hinge |
|
- | |||||
| 11 | 3017304 | Screw-front |
|
- | |||||
| 12 | 3017336 | Filter |
|
- | |||||
| 13 | 3017363 | Rail - Filter, Lh |
|
- | |||||
| 14 | 5303017300 | Knob-control |
|
- | |||||
| 15 | 3017341 | Knob - Slide, Switch |
|
- | |||||
| 16 | 5303017340 | Knob-slide Vent |
|
- | |||||
| 17 | 5303281624 | Dial Plate |
|
- | |||||
| 18 | 5303001775 | Spacer |
|
- | |||||
| 19 | 5303001984 | Seal |
|
- | |||||
| 13A | 3017335 | Rail - Filter Rh |
|
- | |||||
| 1A | 5303210207 | Grille Rear (non-illustrated) |
|
- | |||||
| 1B | 3018409 | Nameplate (non-illustrated) |
|
- |
