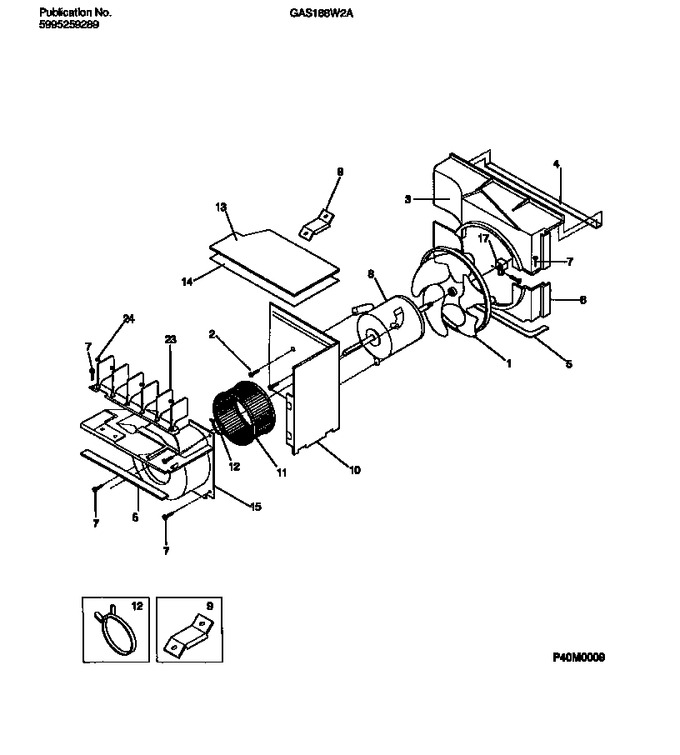

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017959 | Fan Blade And Clamp |
|
- | |||||
| 2 | 3202975 | Screw, (3), Motor |
|
- | |||||
| 3 | 5303015305 | Shroud - Upper |
|
- | |||||
| 4 | 3016696 | Seal - Shroud Upper |
|
- | |||||
| 5 | 5303015311 | Seal - Scroll, Shroud |
|
- | |||||
| 6 | 5303015304 | Shroud - Lower |
|
- | |||||
| 7 | 3015312 | Screw |
|
- | |||||
| 8 | 5303015293 | Motor-fan |
|
- | |||||
| 9 | 5303015306 | Bracket - Shroud |
|
- | |||||
| 10 | 5303295275 | Parition - Air System |
|
- | |||||
| 11 | 5303016832 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| 13 | 5303015313 | Cover - Top |
|
- | |||||
| 14 | 3015314 | Insulation - Top Cover |
|
- | |||||
| 15 | 5303016830 | Scroll |
|
- | |||||
| 17 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 23 | 5303302882 | Louvers W/ Link |
|
- | |||||
| 24 | 3202733 | Nut, Push-on |
|
- |
