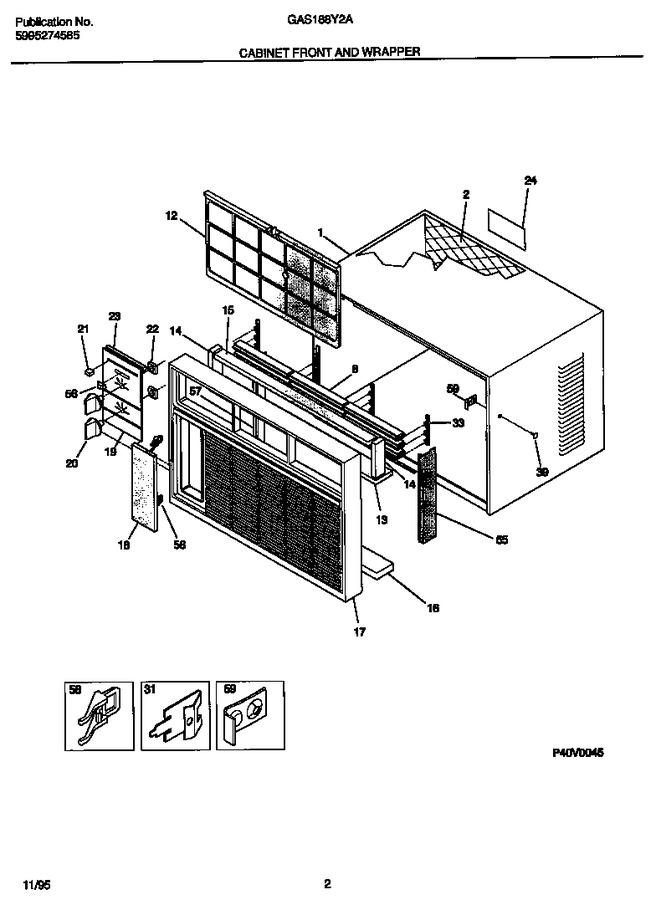

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Panel - Rear		Appelez-nous	-
8	5303316606		Louver-horiz., (3)		Appelez-nous	-
12	5303316607		Filter		Appelez-nous	-
13	3017299		Seal-bottom		Appelez-nous	-
14	5303303148		Seal - Sides		Appelez-nous	-
15	5303271831		Seal - Top		Appelez-nous	-
16	5303281623		Seal - Bottom		Appelez-nous	-
17	5303316608		Front Complete		Appelez-nous	-
18	3202693		Door-front		Appelez-nous	-
19	5303281624		Dial Plate		Appelez-nous	-
20	5303017300		Knob-control		Appelez-nous	-
21	5303017340		Knob - Slide		Appelez-nous	-
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
23	5303001984		Seal - Dial Plate		Appelez-nous	-
31	3200447		Clip - Front (2)		Appelez-nous	-
33	3017303		Retainer - Louver, 4		Appelez-nous	-
39	5303271346		Screw-front, Phillips, 8-18 X .75, Truss Head		Appelez-nous	-
55	3017335		Rail - Filter Rh		Appelez-nous	-
56	3017341		Knob - Slide, Switch		Appelez-nous	-
57	3017363		Rail - Filter, Lh		Appelez-nous	-
58	5303208233		Hinge-door		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
