01 - Cover

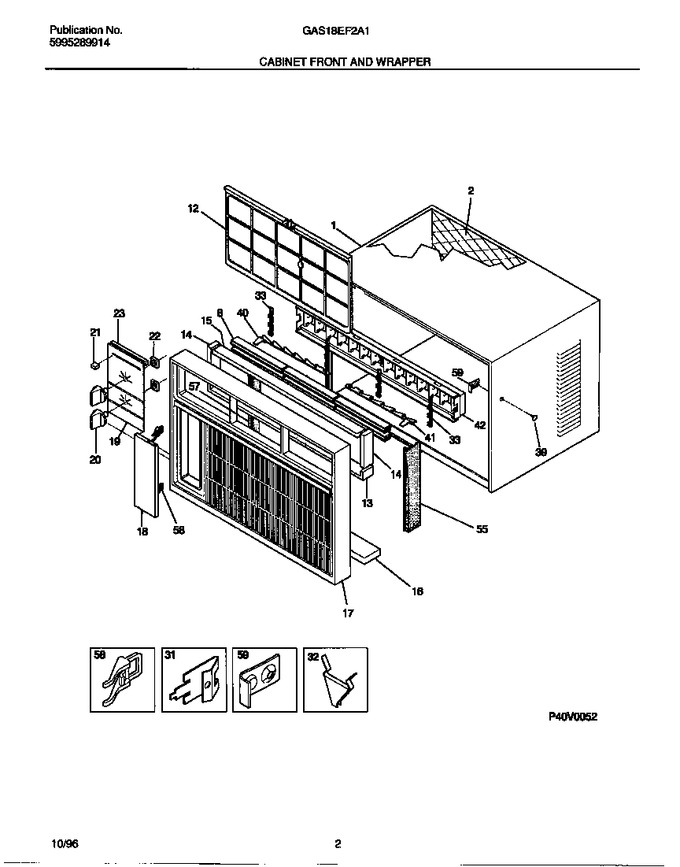

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301790 | Cabinet |
|
- | |||||
| 2 | 5303210207 | Grill,rear |
|
- | |||||
| 8 | 5303316606 | Louver-horiz., (3) |
|
- | |||||
| 12 | 5303316607 | Filter |
|
- | |||||
| 13 | 3018772 | Seal Mullion |
|
- | |||||
| 14 | 5303303148 | Seal - Sides |
|
- | |||||
| 15 | 5303271831 | Seal - Top |
|
- | |||||
| 16 | 5303281623 | Seal - Bottom |
|
- | |||||
| 17 | 5303321496 | Front, Cabinet, Complete |
|
- | |||||
| 18 | 3202693 | Door-front |
|
- | |||||
| 19 | 5303212522 | Dial Plate |
|
- | |||||
| 20 | 5303017300 | Knob-control |
|
- | |||||
| 21 | 5303212504 | Seal-bottom |
|
- | |||||
| 22 | 5303001775 | Spacer, Plate |
|
- | |||||
| 23 | 5303001984 | Seal, Plate |
|
- | |||||
| 31 | 3200447 | Clip, Cabinet Front, (2) |
|
- | |||||
| 32 | 5303001844 | Clip-link, (2) |
|
- | |||||
| 33 | 3017779 | Retainer-louver, (4) |
|
- | |||||
| 39 | 134178901 | Screw, Truss Head, 8-18 X 0.625, Front, (2), Square Driv (Replaces: 5303293767) |
|
$ 14.89 | |||||
| 40 | 309321803 | Link-louver, Rh |
|
- | |||||
| 41 | 309321804 | Link-louver, Lh |
|
- | |||||
| 42 | 5303002459 | Louvers W/ Link |
|
- | |||||
| 55 | 3017335 | Rail - Filter Rh |
|
- | |||||
| 57 | 3017363 | Rail - Filter, Lh |
|
- | |||||
| 58 | 5303208233 | Hinge-door |
|
- | |||||
| 59 | 08010928 | Nut - Front Lock |
|
- |
