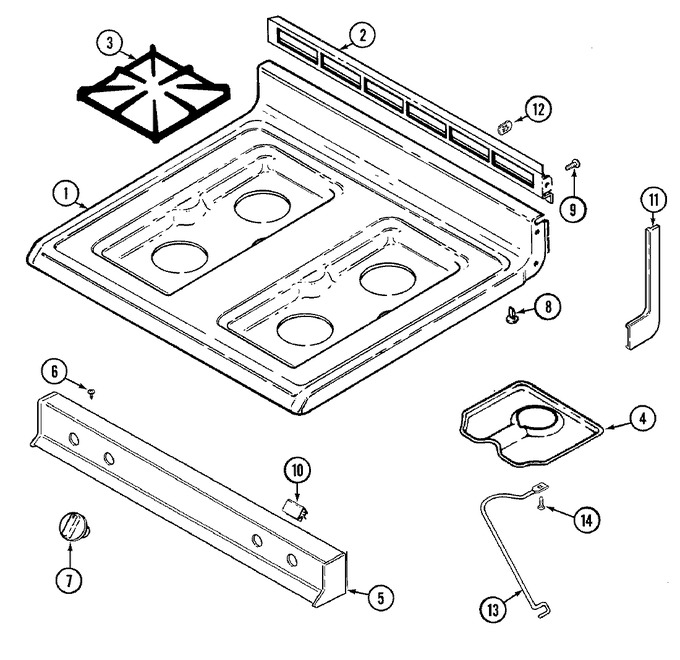

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W086-81 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 10 |
|
- | ||||
| 3 | 2003W026-00 | Grate (blk) | 10 |
|
- | ||||
| 4 | 1430283 | Drip Tray Kit | 10 |
|
$ 95.86 | ||||
| 5 | 74002485 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 6 | 7101P329-60 | Screw | 10 |
|
- | ||||
| 7 | WP74002353 | Knob, Valve (blk) (Replaces: 74002353) | 38 |
|
$ 18.29 | ||||
| 7 | 74002486 | Knob, Valve (blk) | 10 |
|
- | ||||
| 8 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 9 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 10 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 11 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 11 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 12 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 13 | 74001170 | Support, Top | 10 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 74001280) | 10 |
|
Immediately | $ 12.62 |
