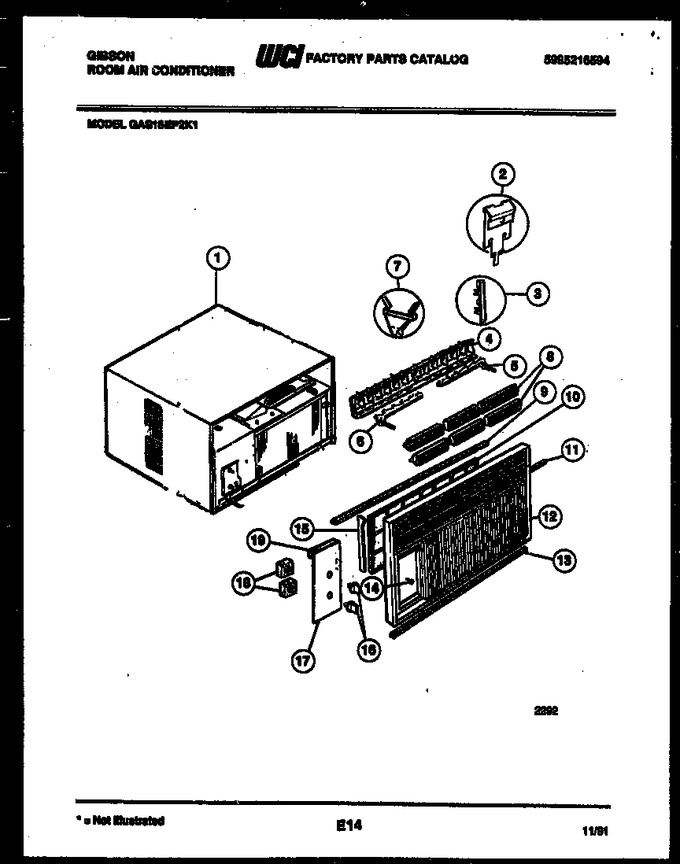

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 3200447 | Clip |
|
- | |||||
| 3 | 3017779 | Retainer-louver |
|
- | |||||
| 4 | 5303002459 | Louver & Link |
|
- | |||||
| 5 | 5303002162 | Link-rh |
|
- | |||||
| 6 | 5303002163 | Link-lh |
|
- | |||||
| 7 | 5303001844 | Clip-link |
|
- | |||||
| 8 | 3017302 | Louvers |
|
- | |||||
| 9 | 5303271831 | Seal-top & Sides |
|
- | |||||
| 10 | 3017336 | Filter |
|
- | |||||
| 11 | 3018772 | Seal Mullion |
|
- | |||||
| 12 | 5303212517 | Front-complete |
|
- | |||||
| 13 | 5303281623 | Seal-btm |
|
- | |||||
| 14 | 3017304 | Screw-front |
|
- | |||||
| 15 | 3017363 | Rail - Filter, Lh |
|
- | |||||
| 16 | 5303017300 | Knob-control |
|
- | |||||
| 17 | 5303212522 | Dial Plate |
|
- | |||||
| 18 | 5303001775 | Spacer |
|
- | |||||
| 19 | 5303281624 | Seal |
|
- | |||||
| 15A | 3017335 | Rail - Filter Rh |
|
- | |||||
| 1A | 5303210207 | Grille Rear (non-illustrated) |
|
- | |||||
| 1B | 3018409 | Nameplate (non-illustrated) |
|
- |
