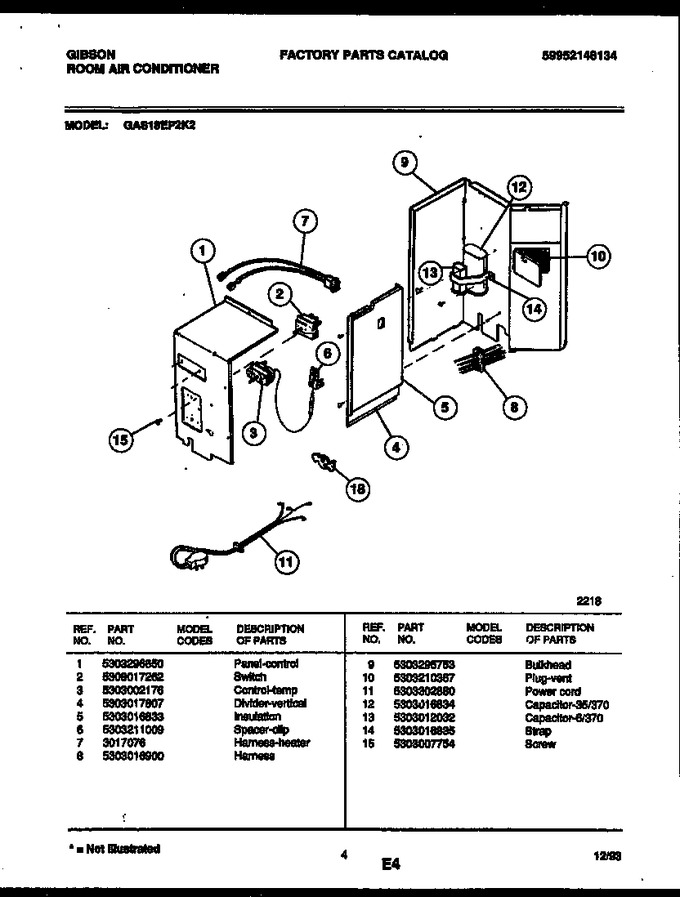

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303296650 | Panel-control |
|
- | |||||
| 2 | 5308017262 | Switch |
|
- | |||||
| 3 | 5303002176 | Control Temp |
|
- | |||||
| 4 | 5303017807 | Divider - Vertical |
|
- | |||||
| 5 | 5303016833 | Insulation |
|
- | |||||
| 6 | 5303211009 | Spacer-clip |
|
- | |||||
| 7 | 3017076 | Harness-heater |
|
- | |||||
| 8 | 5303016900 | Harness |
|
- | |||||
| 9 | 5303295753 | Bulkhead |
|
- | |||||
| 10 | 5303210367 | Plug Vent |
|
- | |||||
| 11 | 5303302880 | Power Cord |
|
- | |||||
| 12 | 5303016834 | Capacitor-35/370 |
|
- | |||||
| 13 | 5303012032 | Capacitor-6/370 |
|
- | |||||
| 14 | 5303016835 | Strap |
|
- | |||||
| 15 | 5303007754 | Screw |
|
- |
