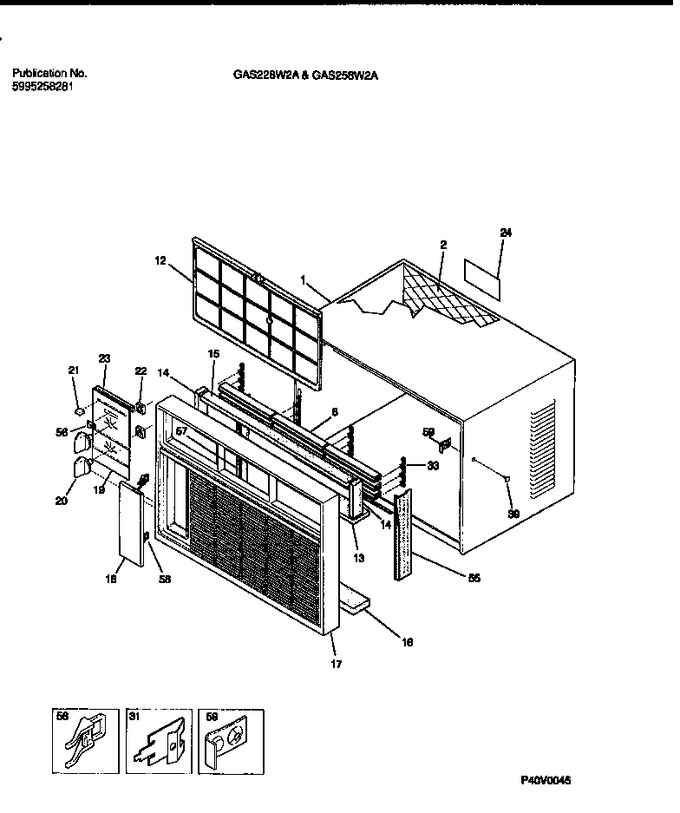

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Panel - Rear		Appelez-nous	-
8	3017302		Louver		Appelez-nous	-
12	3017336		Filter		Appelez-nous	-
13	3017299		Seal Mullion		Appelez-nous	-
14	5303303148		Seal - Sides		Appelez-nous	-
15	5303271831		Seal - Top		Appelez-nous	-
16	5303281623		Seal - Bottom		Appelez-nous	-
17	5303212503		Front Complete		Appelez-nous	-
18	5303207308		Door-front		Appelez-nous	-
19	5303281624		Dial Plate		Appelez-nous	-
20	5303017300		Knob-control		Appelez-nous	-
21	5303017340		Knob - Slide		Appelez-nous	-
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
23	5303001984		Seal - Dial Plate		Appelez-nous	-
30	5303271346		Screw-front		Appelez-nous	-
31	3200447		Clip - Front (2)		Appelez-nous	-
33	3017303		Retainer - Louver, 4		Appelez-nous	-
55	3017335		Rail - Filter Rh		Appelez-nous	-
56	3017341		Knob - Slide, Switch		Appelez-nous	-
57	3017363		Rail - Filter, Lh		Appelez-nous	-
58	5303017980		Hinge - Door		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
21A	5303212504		Seal - Chassis, Bottom		Appelez-nous	-
