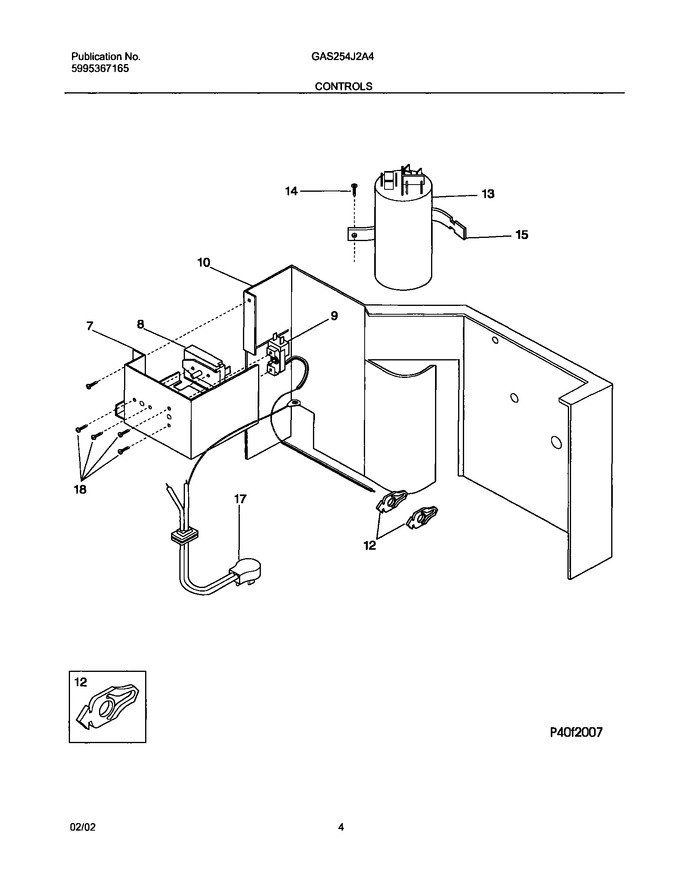

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309630401		Control Box		Appelez-nous	-
8	5304410883		Switch-selector,7 Position		Appelez-nous	-
9	5304410884		Control,air Temperature ,23 Amp		Appelez-nous	-
10	309623602		Bulkhead,control System		Appelez-nous	-
12	309331801		Clip,sensor Retainer ,(2)		Appelez-nous	-
14	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,ground		Appelez-nous	-
15	5303303077		Strap,capacitor Mtg.		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
17No.	309343114		Cord-electric Power,type-d ,12 Awg ,230 V		Appelez-nous	-
F13	5304426869		Capacitor,450 V ,40+7.5 Mfd		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	3200761		Spacer,control Bulb ,rubber		Appelez-nous	-
NI	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
