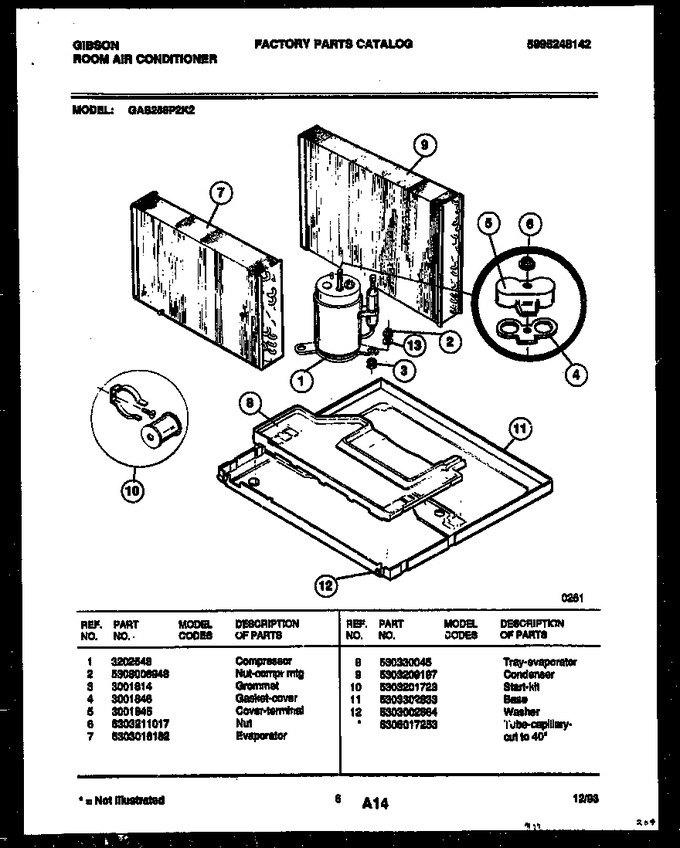

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202548 | Compressor |
|
- | |||||
| 2 | 5308006948 | Nut-compr Mtg |
|
- | |||||
| 3 | 3001814 | Grommet |
|
- | |||||
| 4 | 3001846 | Gasket-cover |
|
- | |||||
| 5 | 3001845 | Cover-terminal |
|
- | |||||
| 6 | 5303211017 | Nut |
|
- | |||||
| 7 | 5303016182 | Evaporator |
|
- | |||||
| 8 | 530330045 | Tray-evaporator |
|
- | |||||
| 9 | 5303209197 | Condenser |
|
- | |||||
| 10 | 5303201723 | Start Kit |
|
- | |||||
| 11 | 5303302833 | Base |
|
- | |||||
| 12 | 5303002664 | Washer |
|
- | |||||
| *66973 | 5308017253 | Tube - Capillary (cut To 40``) |
|
- |
