Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 309603701 Compressor Appelez-nous -
2 5303286606 Grommet - Compressor, 3 Appelez-nous -
3 5308006948 Nut - Compressor Appelez-nous -
5 5303002069 Clamp - Cover Appelez-nous -
6 5303002068 Gasket - Cover Appelez-nous -
7 5303002067 Cover, Terminal Appelez-nous -
10 5303201723 Start Kit Appelez-nous -
11 309605303 Evaporator Appelez-nous -
12 5303303600 Condenser Appelez-nous -
13 5303300045 Tray - Evaporator Appelez-nous -
14 5303302822 Base Appelez-nous -
16 5308017253 Capillary Tube, Cut To 40`` Appelez-nous -
17 530026530 Drier - Filter Appelez-nous -
18 5303290357 Strainer Appelez-nous -
19 5303002664 Washer - Compressor Appelez-nous -
36 5303303558 Strap - Base Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

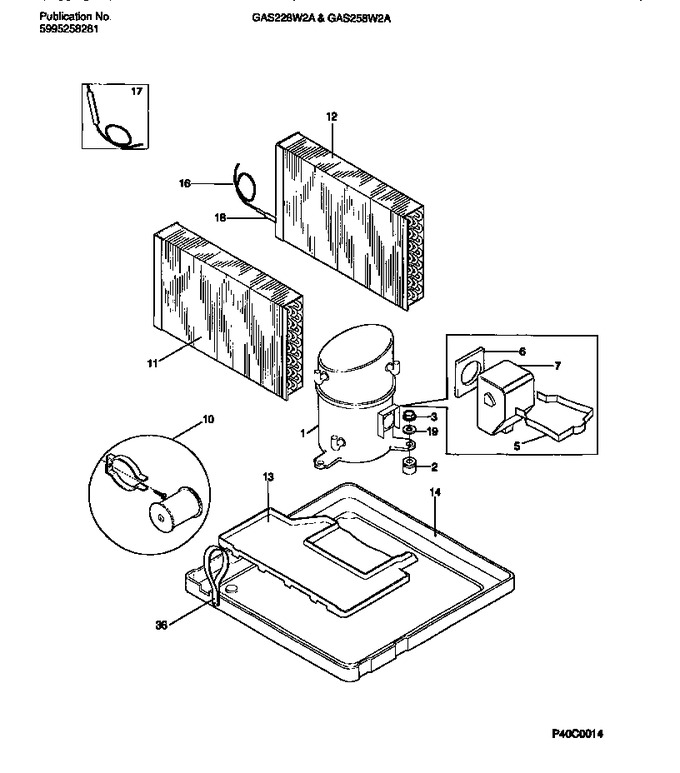

Diagram for GAS258W2A1
