SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper

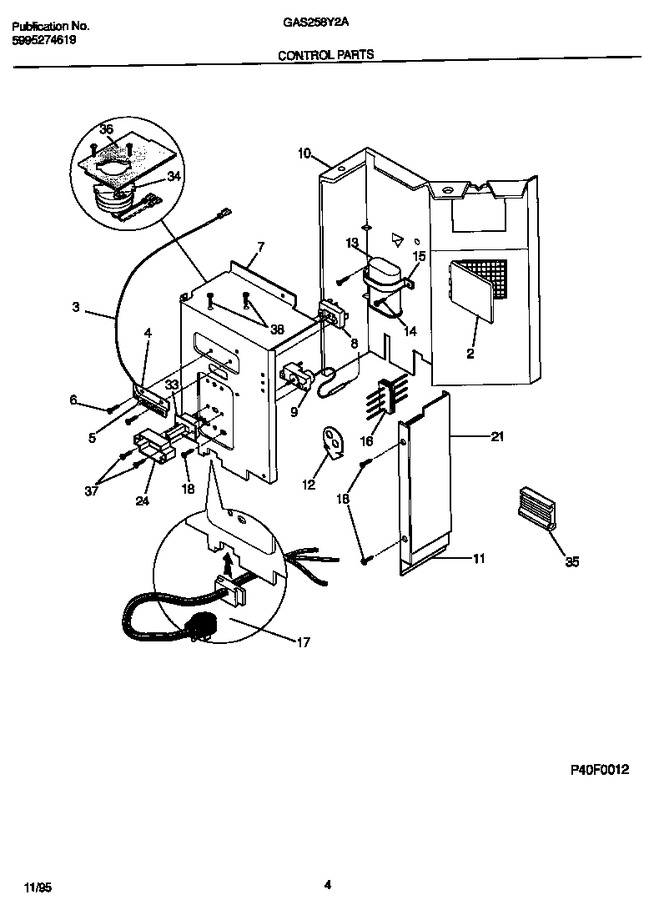

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303295752 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 5 | 5303015299 | Arm - Actuator |
|
- | |||||
| 6 | 5303017342 | Screw |
|
- | |||||
| 7 | 5303293910 | Panel - Control |
|
- | |||||
| 8 | 5303317229 | Switch-selector |
|
- | |||||
| 9 | 5303015319 | Control - Temperature |
|
- | |||||
| 10 | 5303295753 | Partition - Control Area |
|
- | |||||
| 11 | 5303017807 | Divider - Vertical |
|
- | |||||
| 12 | 5303017914 | Clip-control Bulb,(2) |
|
- | |||||
| 13 | 5303303576 | Capacitor, 370 V, 10+35 Mfd |
|
- | |||||
| 14 | 5303015427 | Screw, Phillips, 8-18 X .47, Nib Truss Hd |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 16 | 3202717 | Harness |
|
- | |||||
| 17 | 5303301041 | Cord - Electric Power |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 21 | 5303303011 | Insulation - Divider |
|
- | |||||
| 24 | 5303207304 | Spacer - Switch |
|
- | |||||
| 33 | 3202118 | Switch - Slide |
|
- | |||||
| 34 | 5303015317 | Motor-drive |
|
- | |||||
| 35 | 3200761 | Spacer - Control Bulb |
|
- | |||||
| 36 | 5303015428 | Insulation - Panel |
|
- | |||||
| 37 | 5303302257 | Screw, Slide Switch |
|
- | |||||
| 38 | 5303015294 | Screw, Motor Drive |
|
- |
