01 - Cover
02 - Cabinet Front And Wrapper

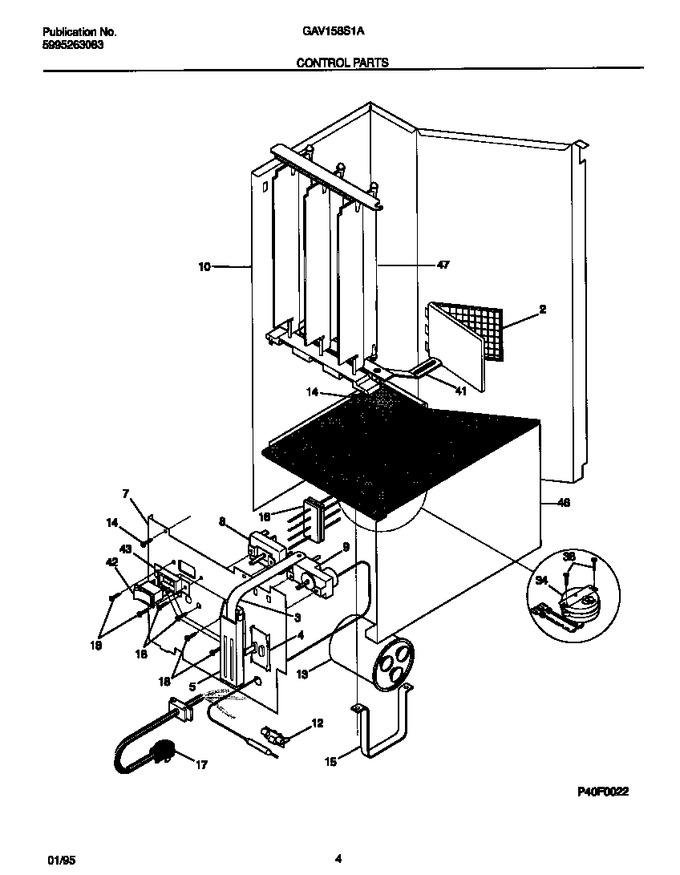

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303295752 | Door-vent |
|
- | |||||
| 3 | 5303201820 | Strap,vent Door |
|
- | |||||
| 4 | 5303201821 | Actuator, Door |
|
- | |||||
| 5 | 5303209200 | Retainer-actuator |
|
- | |||||
| 7 | 5303201833 | Panel-control |
|
- | |||||
| 8 | 3017344 | Switch - Selector |
|
$ 166.42 | |||||
| 9 | 5303201838 | Control-temperature |
|
- | |||||
| 10 | 5303305232 | Bulkhead |
|
- | |||||
| 12 | 5303211009 | Clip-control Bulb |
|
- | |||||
| 13 | 5303201951 | Capacitor,370 V ,10+40 Mfd |
|
- | |||||
| 14 | 5303015427 | Screw |
|
- | |||||
| 15 | 3201845 | Strap-capacitor |
|
- | |||||
| 16 | 5303017345 | Harness |
|
- | |||||
| 17 | 5303301021 | Cord-electric Power |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 34 | 5303015317 | Motor-drive |
|
- | |||||
| 38 | 5303015294 | Screw, Motor Drive |
|
- | |||||
| 41 | 5300517130 | Link-louvers Vertical |
|
- | |||||
| 42 | 5303201834 | Switch-rocker |
|
- | |||||
| 43 | 5303201835 | Bracket-switch |
|
- | |||||
| 46 | 5303305231 | Cover |
|
- | |||||
| 47 | 309602201 | Louver, Vertical, (3) |
|
- |
