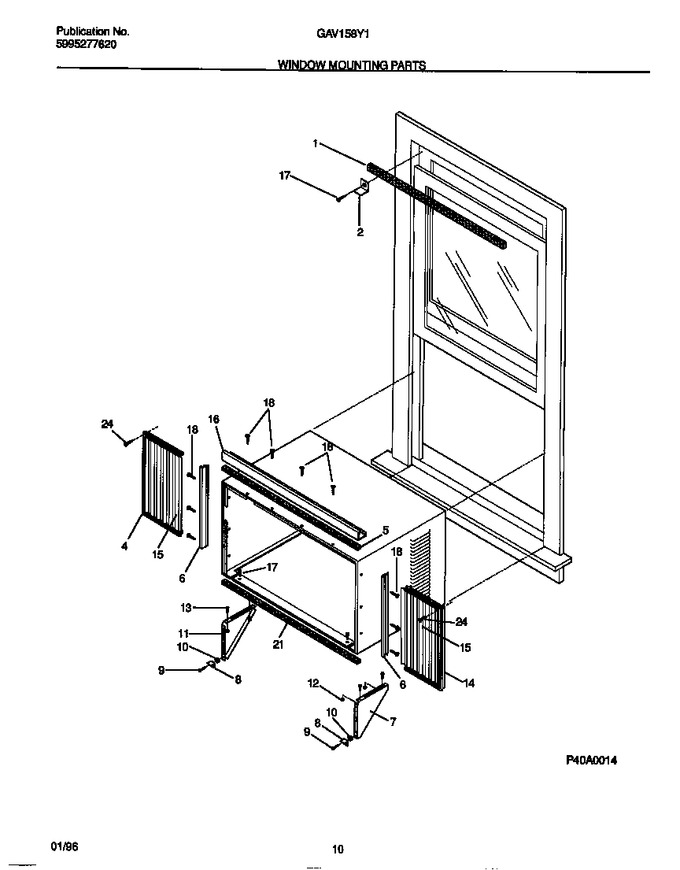

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002608 | Seal - Window |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5303302304 | Frame, Lh |
|
- | |||||
| 5 | 3001980 | Seal - Top Rail |
|
- | |||||
| 6 | 5303301765 | Retainer - Accordian |
|
- | |||||
| 7 | 5303301254 | Support, Rh |
|
- | |||||
| 8 | 3001815 | Bracket - Support |
|
- | |||||
| 9 | 3007756 | Screw - Sill Supt |
|
- | |||||
| 10 | 3007759 | Nut - Bracket |
|
- | |||||
| 11 | 5303301255 | Support, Lh |
|
- | |||||
| 12 | 3017023 | Nut,hex ,10-32 ,2 |
|
- | |||||
| 13 | 5303281649 | Screw - Support, 4 |
|
- | |||||
| 14 | 5303302305 | Frame, Rh |
|
- | |||||
| 15 | 5303302306 | Accordian |
|
- | |||||
| 16 | 5303301777 | Rail - Top |
|
- | |||||
| 17 | 3002803 | Screw - Sash Lock |
|
- | |||||
| 18 | 08012680 | Screw |
|
- | |||||
| 21 | 5303212504 | Seal - Chassis, Bottom |
|
- | |||||
| 24 | 3002801 | Screw |
|
- | |||||
| *71960 | 5303284744 | Instructions, Installation |
|
- | |||||
| *71961 | 5303301888 | Kit - Window Mtg |
|
- |
