SELECT A DIAGRAM

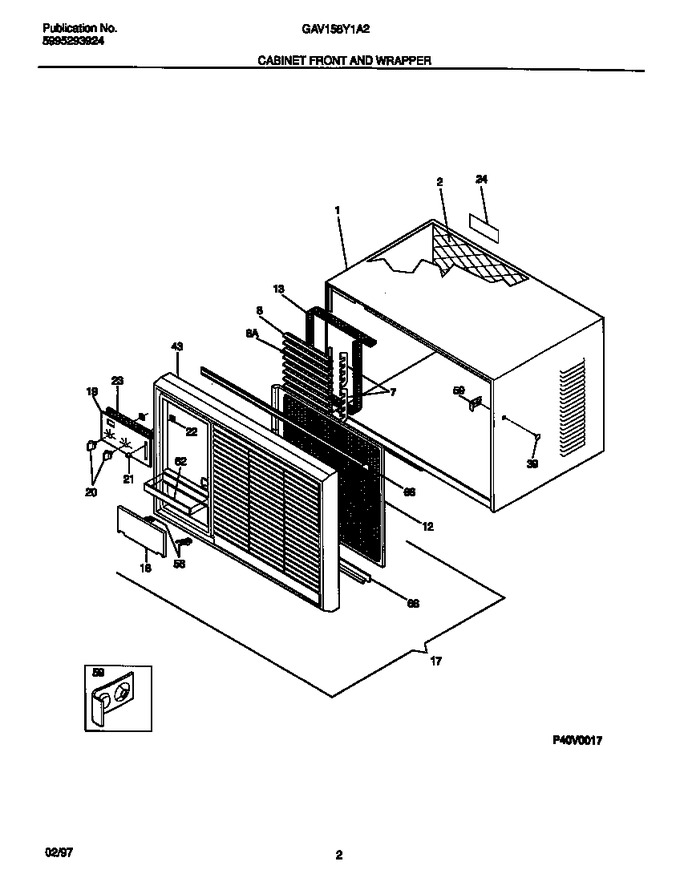

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Grill,rear		Appelez-nous	-
7	5303202811		Link-louver		Appelez-nous	-
8	5303306430		Louver-w/handle, (2)		Appelez-nous	-
8	5303306429		Louver, Horiz.		Appelez-nous	-
12	5303306438		Filter		Appelez-nous	-
13	5303201854		Seal-front		Appelez-nous	-
17	5303317813		Front Complete		Appelez-nous	-
18	5303302878		Door-front		Appelez-nous	-
19	5303302874		Dial-plate		Appelez-nous	-
20	5303017300		Knob-control		Appelez-nous	-
21	5303017340		Knob - Slide		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
23	3201953		Seal-dial Plate		Appelez-nous	-
39	5303271346		Screw, Truss Head, 8-18ab X 0.75		Appelez-nous	-
43	5303306437		Frame-front		Appelez-nous	-
58	5303017980		Hinge - Door		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
62	5303307478		Insert-front		Appelez-nous	-
66	5303272800		Rail, Filter		Appelez-nous	-
