Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 309609207 Wrapper Appelez-nous -
2 3018409 Nameplate-rear Grille (not Illustrated) Appelez-nous -
2 5303303597 Panel-rear Appelez-nous -
8 5303307163 Louver Appelez-nous -
12 5303307161 Filter Appelez-nous -
13 5303306435 Seal-mullion Appelez-nous -
14 5303306434 Seal-front Panel Appelez-nous -
17 309610308 Front Complete Appelez-nous -
19 309608112 Dial Plate Appelez-nous -
20 5303017300 Knob-control Appelez-nous -
21 5303017340 Knob - Slide Appelez-nous -
23 5303307039 Seal-dial Plate Appelez-nous -
28 309100401 Clip-front Appelez-nous -
29 134178901 Screw, Phillips Truss, 8-18 X .625, (2) Front, Truss Hd   (Replaces: 5303293767) Special Order $ 14.89

43 5303307162 Frame-front Appelez-nous -
62 309609008 Insert-front Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

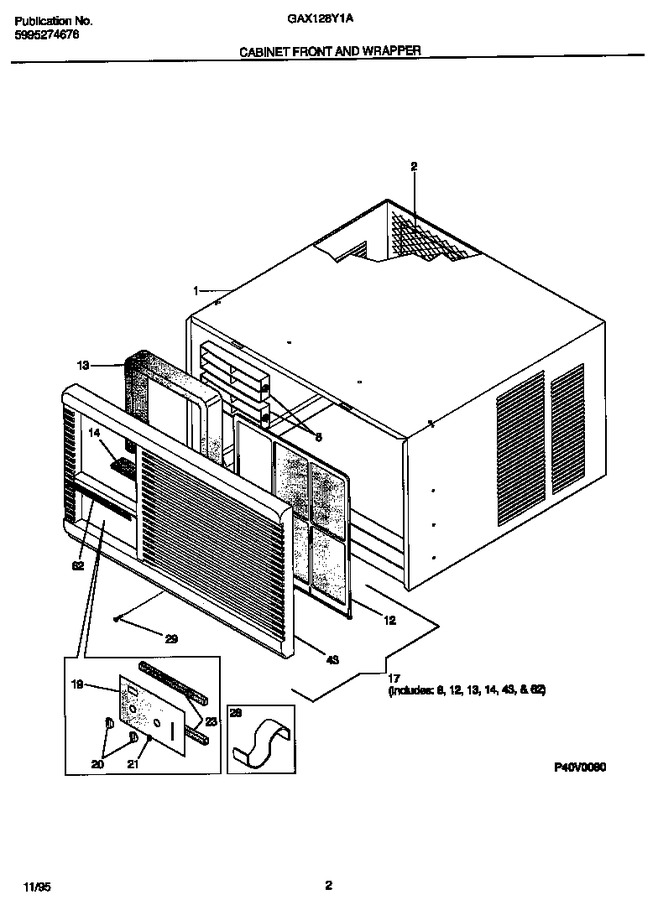

Diagram for GAX128Y1A1
