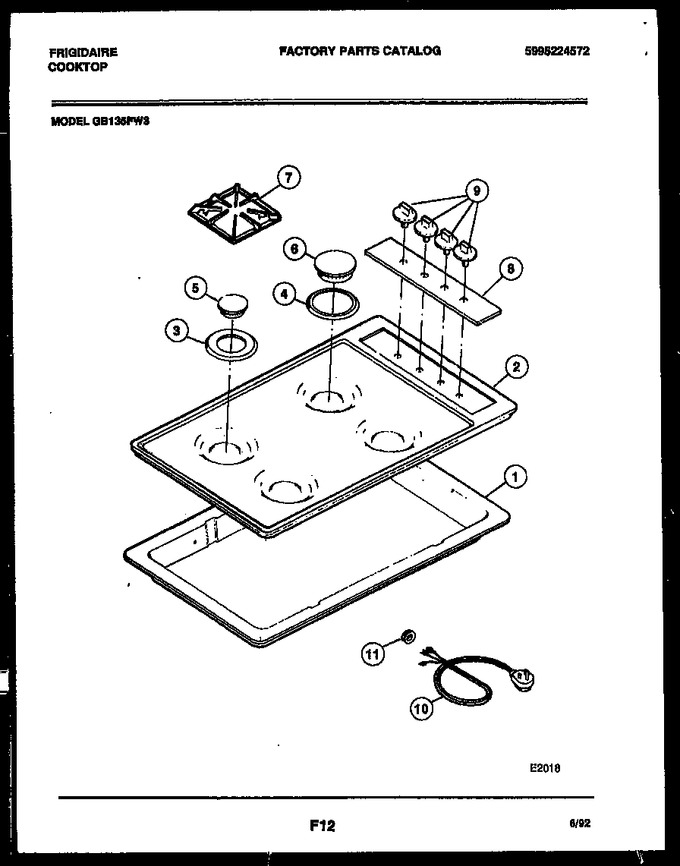

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209008 | Burner Box |
|
- | |||||
| 2 | 5303209035 | Pnl-main Top (wheat) |
|
- | |||||
| 3 | 5303209009 | Trim-ring (medium) |
|
- | |||||
| 4 | 5303209010 | Trim-ring (large) |
|
- | |||||
| 5 | 5303209011 | Cap-burner (medium) |
|
- | |||||
| 6 | 5303209012 | Cap-burner (large) |
|
- | |||||
| 7 | 5303209013 | Grate-square |
|
- | |||||
| 8 | 316006304 | Panel-control |
|
- | |||||
| 9 | 316006201 | Knob-control |
|
- | |||||
| 10 | 3205202 | Cord - Power |
|
- | |||||
| 11 | 5304513507 | Bushing - Snap (Replaces: 3201437) |
|
$ 9.10 |
