SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Gas Controls


05 - Oven/base


06 - Top Assembly


07 - Wiring Information

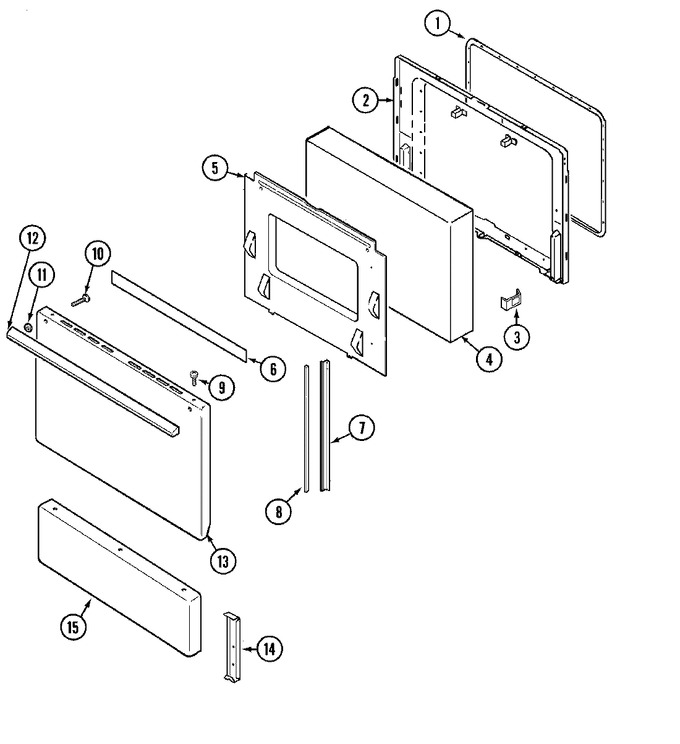

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
2	2402W210-19		Lining, Door	10	Appelez-nous	-
3	7112P034-60		Clip, Door	10	Appelez-nous	-
4	74001842		Insulation, Door	10	Appelez-nous	-
5	3601F218-47		Baffle, Door	10	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	3818F052-80		Channel, Air	10	Appelez-nous	-
8	7208P002-60		Seal	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	10		Immediately	$ 7.69
11	8010P084-60		Spacer, Handle (blk)	10	Appelez-nous	-
12	WP2411F013-70		Handle, Door (chr)   (Replaces: 74001819)	10			$ 186.01
13	2401F098-71		Panel, Door (wht)	10	Appelez-nous	-
14	3801F278-51		Bracket, Panel	10	Appelez-nous	-
15	2403F034-71		Panel, Lower (wht)	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
