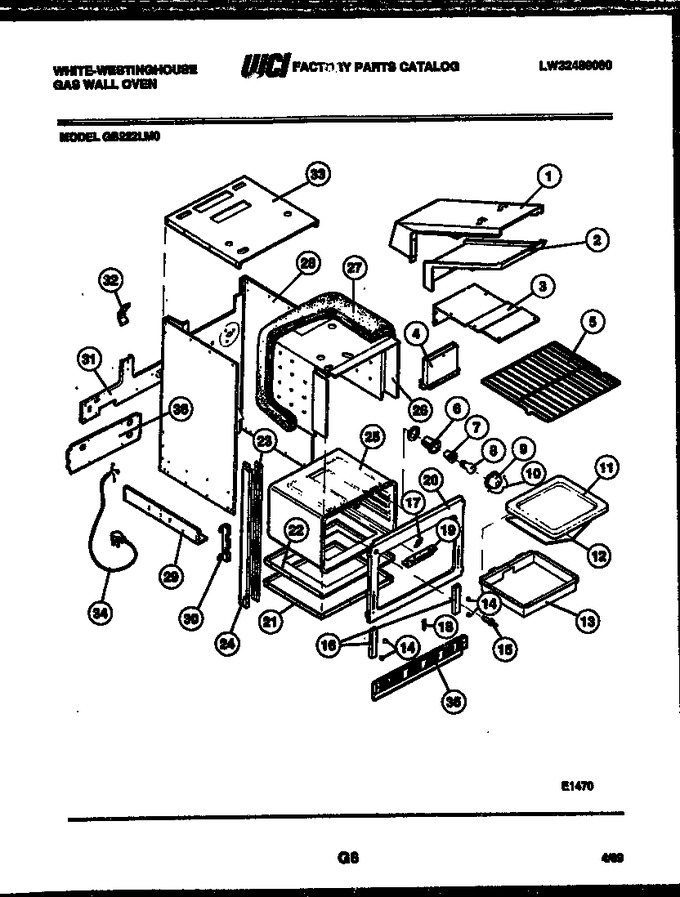

| 1 | 3204210 | Shield Flue Top |
|
- | |||||
| 2 | 3203725 | Flue |
|
- | |||||
| 3 | 3203686 | Shield - Flue Bottom |
|
- | |||||
| 4 | 3203730 | Flue Adaptor |
|
- | |||||
| 5 | 3016315 | Rack-oven (2) |
|
- | |||||
| 6 | 3016243 | Tube - Oven Light |
|
- | |||||
| 7 | 08011085 | Recept. Light |
|
- | |||||
| 8 | 3013071 | Bulb |
|
- | |||||
| 9 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 10 | 3016244 | Retainer-lens |
|
- | |||||
| 11 | 3203721 | Bottom-oven |
|
- | |||||
| 12 | 3202720 | Baffle-oven Bttm |
|
- | |||||
| 13 | 3203731 | Box-oven Burner |
|
- | |||||
| 14 | 3203663 | Spacer-rubber |
|
- | |||||
| 15 | 3051531 | Switch-oven Light |
|
- | |||||
| 16 | 3203688 | Support,oven Front |
|
- | |||||
| 17 | 3202082 | Cover-front Drum Seam |
|
- | |||||
| 18 | 3019063 | Retainer-door |
|
- | |||||
| 19 | 3203685 | Shield-vent |
|
- | |||||
| 20 | 3202463 | Front-oven |
|
- | |||||
| 21 | 3202447 | Wrap-out Base |
|
- | |||||
| 22 | 3203683 | Shield-insulat. Base |
|
- | |||||
| 23 | 3203665 | Trim Inner-lh |
|
- | |||||
| 24 | 3204219 | Trim-side Outer |
|
- | |||||
| 25 | 3203727 | Liner |
|
- | |||||
| 26 | 3203684 | Shield-insul. (t & S) |
|
- | |||||
| 27 | 3016319 | Insul. Back |
|
- | |||||
| 28 | 3203689 | Wrapper-outer-b & S |
|
- | |||||
| 29 | 3016278 | Support Height Adjust. |
|
- | |||||
| 30 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 31 | 3203703 | Brkt. Safety Valve |
|
- | |||||
| 32 | 3016281 | Spring, Oven |
|
- | |||||
| 33 | 3203690 | Wrapper, Top |
|
- | |||||
| 34 | 3203699 | Cord Power |
|
- | |||||
| 35 | 3202237 | Trim-base Vent |
|
- | |||||
| 36 | 3203678 | Cover-wire |
|
- | |||||
| *19677 | 3131060 | Clip-capillary |
|
- | |||||
| *19677 | 3203680 | Cover-capil. Tube |
|
- | |||||
| *19677 | 3201632 | Spacer-oven |
|
- | |||||
| 23A | 3203664 | Trim Inner-rh |
|
- | |||||
| 27A | 3203659 | Insul. Top |
|
- | |||||
| 27B | 3203660 | Insul. Adaptor |
|
- | |||||
| 27C | 3203661 | Insul. Oven Bttm. |
|
- | |||||
| 27D | 3203662 | Insul. Wrap. |
|
- |
