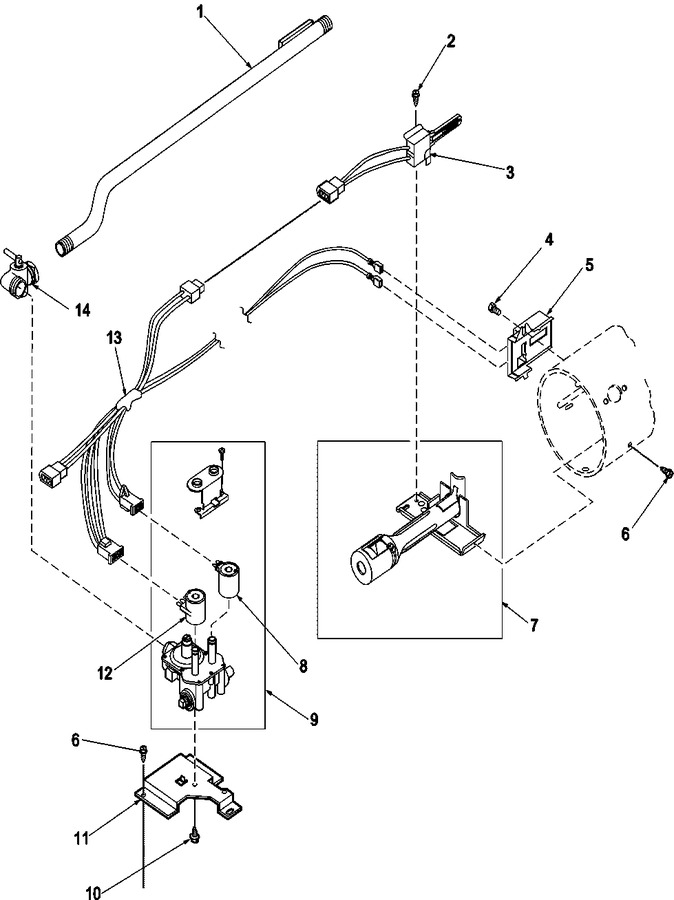

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 500647 | Pipe, Lead-in |
|
- | |||||
| 2 | Sub. To D510151W | Screw, 6b-20x5/16 (Replaces: 51782) |
|
- | |||||
| 3 | WP37001308 | Assy,igniter & Brack (Replaces: 503604) |
|
Immediately | $ 67.52 | ||||
| 4 | WP3177991 | Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
Immediately | $ 6.47 | ||||
| 5 | WP338906 | Sensor, Flame (Replaces: Y56231) |
|
Immediately | $ 46.72 | ||||
| 7 | Y56234 | Assembly, Burner |
|
- | |||||
| 8 | 279834 | Coil, Secondary (Replaces: 58804B) |
|
Immediately | $ 29.57 | ||||
| 9 | Y504091 | Assembly, Gas Valve |
|
$ 196.12 | |||||
| 11 | 500821 | Bracket, Mounting |
|
- | |||||
| 12 | 58804A | Booster & Holding Coil |
|
Immediately | $ 28.02 | ||||
| 13 | 60641 | Assy,wire Harness-gas |
|
- | |||||
| 14 | Y56229 | Valve,elbow Shut-off |
|
- |
