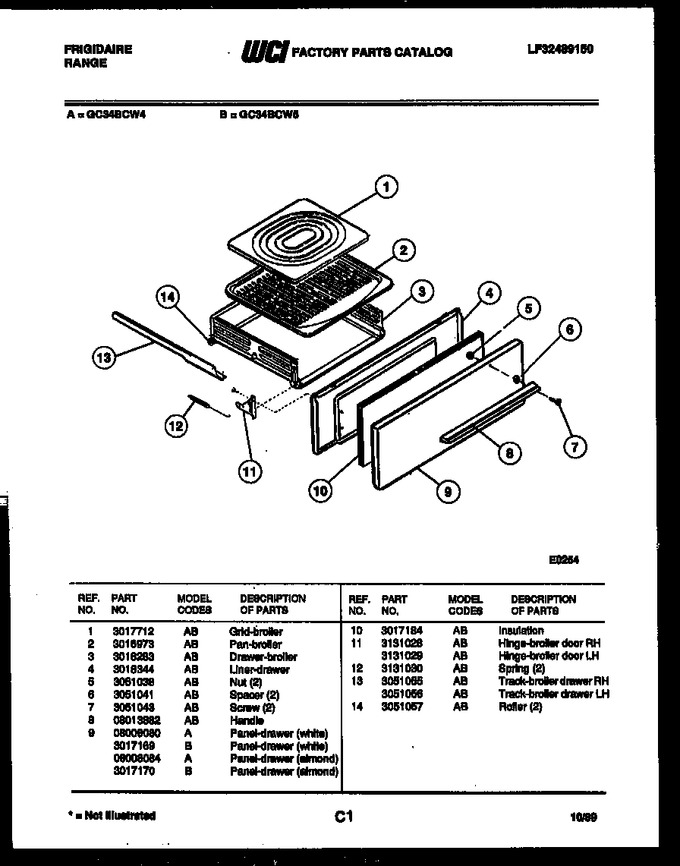

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017712		Grid-broiler		Appelez-nous	-
2	3016973		Pan-broiler		Appelez-nous	-
3	3018283		Drawer Broiler		Appelez-nous	-
4	3018344		Liner-drawer		Appelez-nous	-
5	3051038		Nut (2)		Appelez-nous	-
6	3051041		Spacer (2)		Appelez-nous	-
7	3051043		Screw (2)		Appelez-nous	-
8	08013882		Handle		Appelez-nous	-
9	08008080		Panel-broiler (white)		Appelez-nous	-
10	3017184		Insulation		Appelez-nous	-
11	3131028		Hinge-broiler Door Rh		Appelez-nous	-
12	3131030		Spring (2)		Appelez-nous	-
13	3051055		Track-broiler Drawer Rh		Appelez-nous	-
14	3051057		Roller (2)		Appelez-nous	-
11A	3131029		Hinge-broiler Door Lh		Appelez-nous	-
13A	3051056		Track-broiler Drawer Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
