Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4452604 Panel, Control (black) Appelez-nous -
1 4452605 Panel, Control (white) Appelez-nous -
1 4452974 Panel, Control (biscuit) Appelez-nous -
1 4451791 Panel, Control (stainless) Appelez-nous -
2 4453178 Switch, Membrane (black) Appelez-nous -
2 4453180 Switch, Membrane (white) Appelez-nous -
2 4453184 Switch, Membrane (biscuit) Appelez-nous -
2 4453182 Switch, Membrane (stainless) Appelez-nous -
3 4452248 Insulation, Board Appelez-nous -
4 4452249 Insulation, Board Support Appelez-nous -
5 4452260 Spacer, Foam Appelez-nous -
6 4452345 Insulator, Dialectric Appelez-nous -
7 4452953 Microcomputer Special Order $ 384.80

8 3400406 Screw Appelez-nous -
9 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

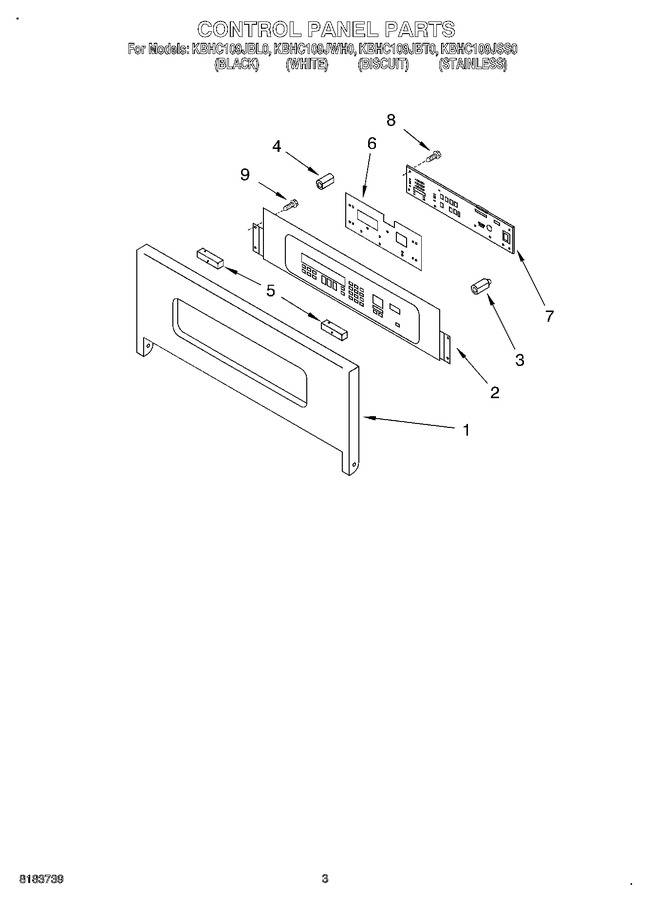

Diagram for KBHC109JSS0
