01 - Body
02 - Control Panel
03 - Door/drawer (3442srx)
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

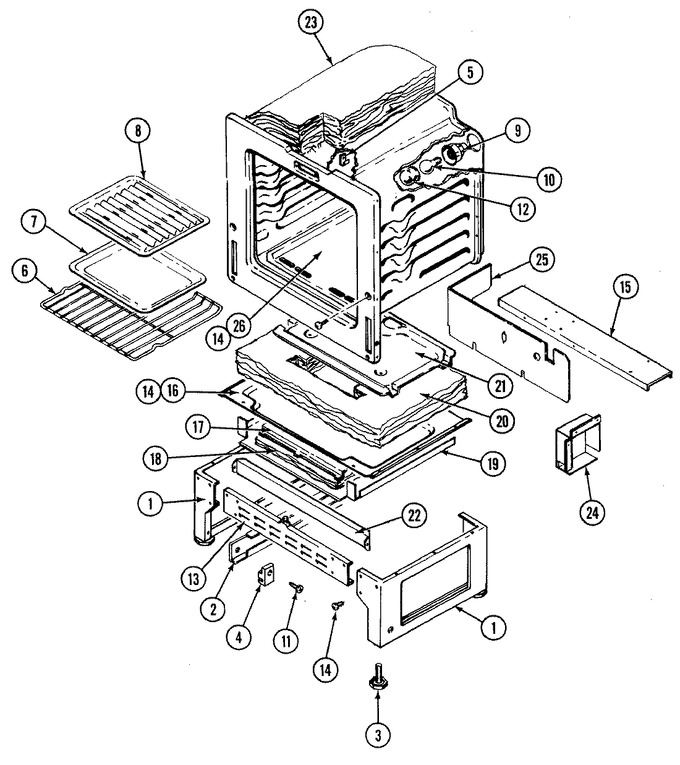

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4020F003-80 | Side Pedestal | 01 |
|
- | ||||
| 1 | 4020W006-80 | Base, Main | 03 |
|
- | ||||
| 1 | 74003003 | Pedestal, Side | 39 |
|
- | ||||
| 2 | 3406F028-51 | Runner, Drawer | 01 |
|
- | ||||
| 3 | W11665456 | Leg, Leveling (Replaces: 74002373) | 39 |
|
Immediately | $ 25.30 | |||
| 3 | 7101P306-60 | Leg, Leveling | 01 |
|
- | ||||
| 4 | 8004P025-60 | Support, Drawer | 01 |
|
- | ||||
| 5 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 7801P036-60) | 01 |
|
$ 65.15 | ||||
| 7 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 8 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 9 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 01 |
|
Immediately | $ 66.10 | |||
| 10 | 40A15 | Lamp, Oven (Replaces: 7407P091-60) | 01 |
|
Immediately | $ 1.98 | |||
| 11 | 7101P103-60 | Screw | 01 |
|
- | ||||
| 12 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 01 |
|
Immediately | $ 71.93 | |||
| 13 | 4020F001-80 | Pedestal, Front/rear | 01 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 15 | 3807F443-51 | Support Valve/regulator | 01 |
|
- | ||||
| 16 | 3804F109-51 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 17 | 3604F204-51 | Shield, Heat | 01 |
|
- | ||||
| 18 | 7002P140-60 | Insulation, Drawer & Shield | 01 |
|
- | ||||
| 19 | 3604F205-51 | Shield, Drawer | 01 |
|
- | ||||
| 20 | 4804F014-60 | Insulation, Oven Bottom | 01 |
|
- | ||||
| 21 | 3401F023-45 | Pan, Bake Burner | 01 |
|
- | ||||
| 22 | 3601F208-45 | Baffle, Oven Front | 01 |
|
- | ||||
| 22 | 74001219 | Baffle, Oven Front | 31 |
|
- | ||||
| 23 | 4804F016-60 | Insulation, Wrap | 01 |
|
- | ||||
| 23 | 4804F015-60 | Insulation, Back | 01 |
|
- | ||||
| 24 | 3807F432-45 | Support, Spark Module | 01 |
|
- | ||||
| 25 | 4005F340-51 | Cover Valve Wire | 01 |
|
- | ||||
| 26 | 5504M004-19 | Bottom, Oven Assy. | 01 |
|
- | ||||
| 26 | 3601F229-45 | Baffle, Oven Bottom | 01 |
|
- |
