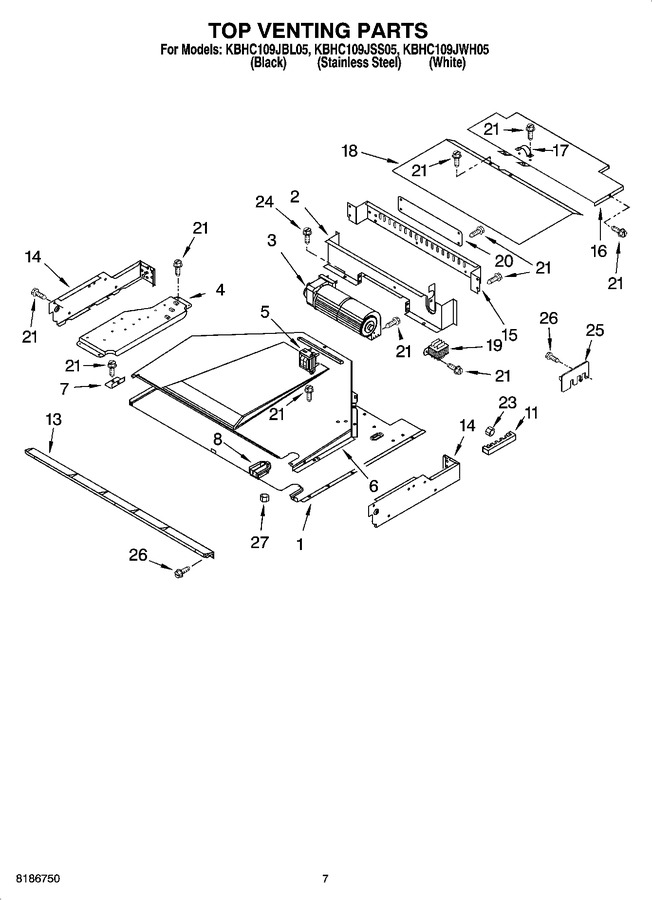

05 - Top Venting Parts


06 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450378		Cover, Top		Appelez-nous	-
2	4448935		Baffle, Blower		Appelez-nous	-
3	4450920		Blower		Appelez-nous	-
4	4451789		Plate, Mounting		Appelez-nous	-
5	WP9760588		Transformer, Lights   (Replaces: 9760588)				$ 237.07
6	4451634		Exhaust Duct		Appelez-nous	-
7	4450027		Bracket, Duct		Appelez-nous	-
8	4449964		Grommet		Appelez-nous	-
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
13	4456145		Vent-cntrl Panel		Appelez-nous	-
14	W10790240		Side, Control Top (left)   (Replaces: 4451598)				$ 67.21
14	W10755214		Side, Control Top (right)   (Replaces: 4451597)		Appelez-nous	-
15	4452244		Back, Control		Appelez-nous	-
16	4450551		Cover, Top Rear		Appelez-nous	-
17	4448664		Clamp				$ 18.35
18	WP4452367		Cover, Top Front   (Replaces: 4450554)				$ 68.53
19	4455038		Transformer-cntrl Control		Appelez-nous	-
20	4452247		Cover, Plate		Appelez-nous	-
21	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
23	WP112432		Nut   (Replaces: 112432)				$ 7.16
24	489392		Screw   (Replaces: 1180485)				$ 12.02
25	4451934		Suppressor				$ 61.73
26	W11684512		Screw   (Replaces: 3400080)				$ 12.69
27	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
