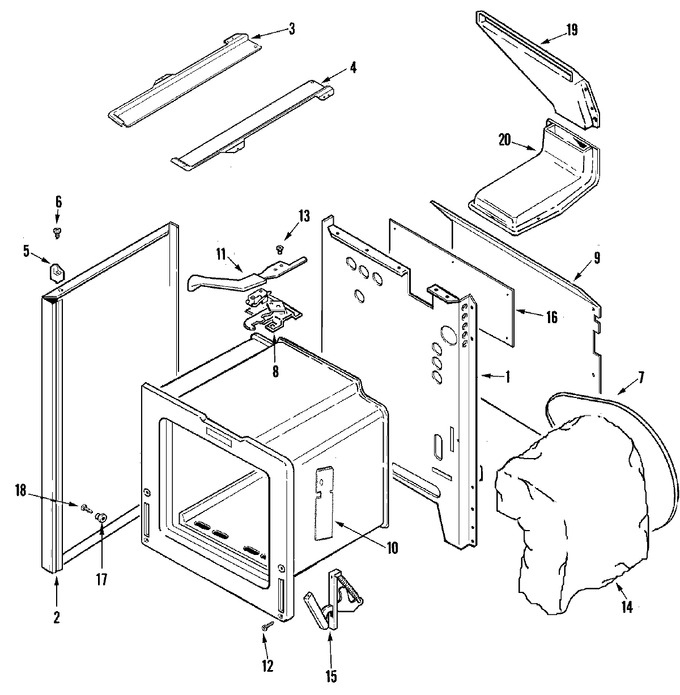

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	W11577436		Grommet   (Replaces: 8008P010-60)	10	Appelez-nous	-
1	74006548		Back, Main	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74003283		Panel, Side (blk)	10	Appelez-nous	-
3	74002633		Box, Burner (lt)	10	Appelez-nous	-
4	74002632		Box, Burner (rt)	10	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74003385		Strap, Insulation	10	Appelez-nous	-
8	12001942		Door Latch Kit	10			$ 190.82
9	74003816		Cover, Main Back (wire)	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74009569		Shield, Heat	10	Appelez-nous	-
11	74001075		Lever, Latch (blk)	10	Appelez-nous	-
12	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
13	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	10			$ 4.29
15	WP74011141		Hinge, Door   (Replaces: 74003968)	10		Immediately	$ 128.06
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	3604F165-51		Shield, Flue (lower)	10	Appelez-nous	-
17	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
18	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	10		Immediately	$ 12.65
19	4022W007-19		Extension, Flue Box	10	Appelez-nous	-
19	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
20	74006420		Box, Vent	10	Appelez-nous	-
20	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47

    View Diagram in Separate Window       Print Part List
