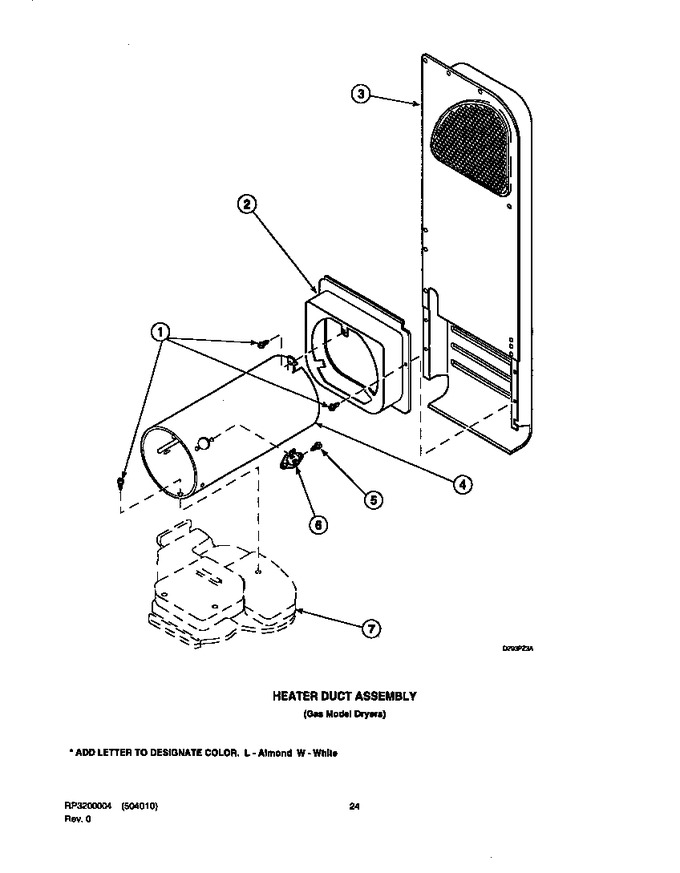

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
2	500122		Shroud, Heat Duct		Appelez-nous	-
3	503607		Assembly, Heater Duct		Appelez-nous	-
4	Y61888		Duct, Combustion		Appelez-nous	-
5	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
6	Y61886		Thermostat, Limit		Appelez-nous	-
7	D514245		Base, Dryer   (Replaces: 500070)				$ 101.22

    View Diagram in Separate Window       Print Part List
