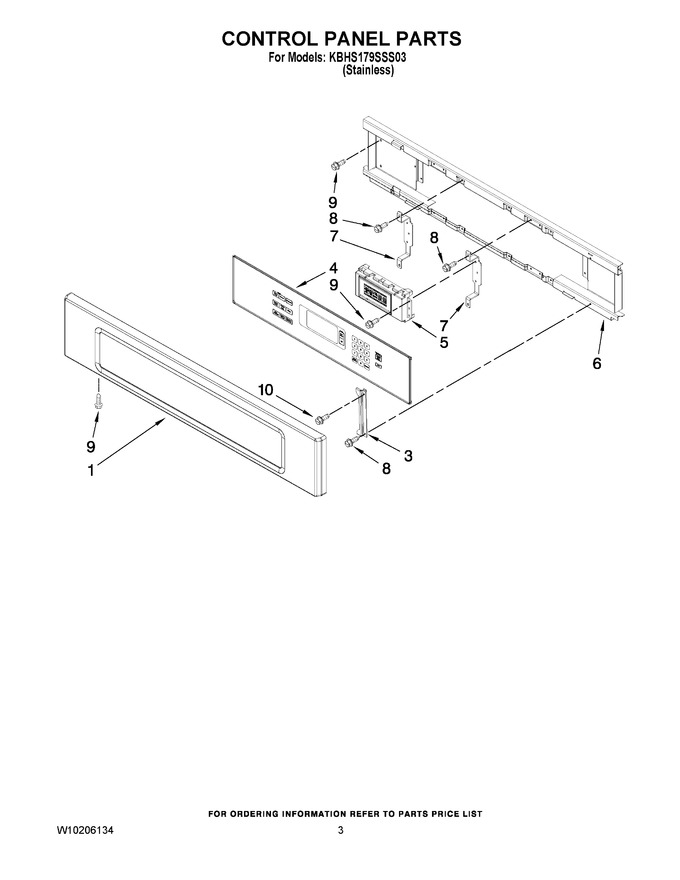

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165446 | Panel, Control |
|
- | |||||
| 3 | W10169348 | Bracket, Glass Touch |
|
$ 8.32 | |||||
| 4 | 8304334 | Keyboard, Glass Touch |
|
$ 249.74 | |||||
| 5 | W10118736 | User Inferface |
|
- | |||||
| 6 | 8303720 | Backer, Control |
|
$ 38.91 | |||||
| 7 | 8303887 | Bracket,enclosure |
|
$ 7.82 | |||||
| 8 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 9 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 6.47 | |||||
| 10 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
