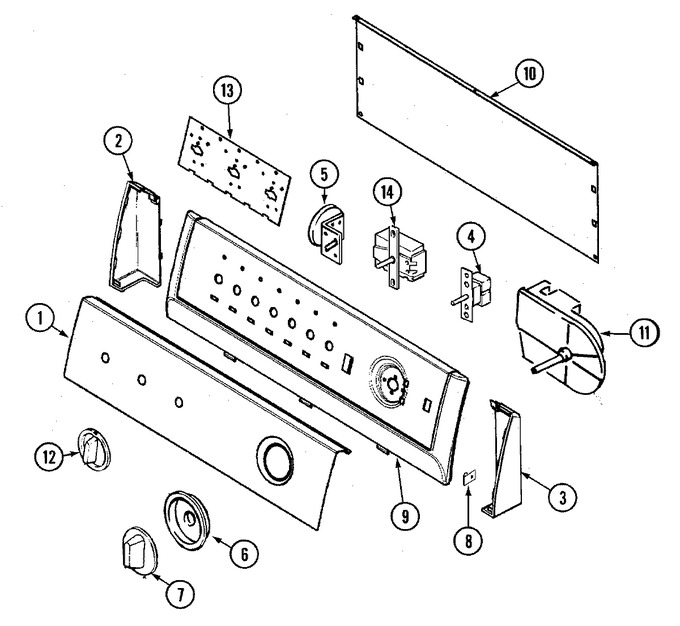

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 1 | 21001565 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | 21001546 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 21001547 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 4 | 31001190 | Switch, Two Position Rotary | 10 |
|
$ 52.56 | ||||
| 5 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | WP21001554 | Switch, Water Level (Replaces: 21001554) | 10 |
|
$ 143.59 | ||||
| 6 | 21001520 | Skirt, Timer Knob (wht) | 10 |
|
- | ||||
| 7 | 21001526 | Knob, Timer (wht) | 10 |
|
$ 24.05 | ||||
| 8 | 21001226 | Switch, Water Temp. 4 Position | 10 |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | 21001552 | Frame (wht), Control Panel | 10 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | 21001561 | Timer | 10 |
|
$ 191.52 | ||||
| 12 | 21001544 | Knob, Selector (wht) | 10 |
|
- | ||||
| 13 | 21001603 | Shield, Control (3 Pos.) | 10 |
|
- | ||||
| 14 | 21001575 | Manual, Use & Care | 10 |
|
- |
