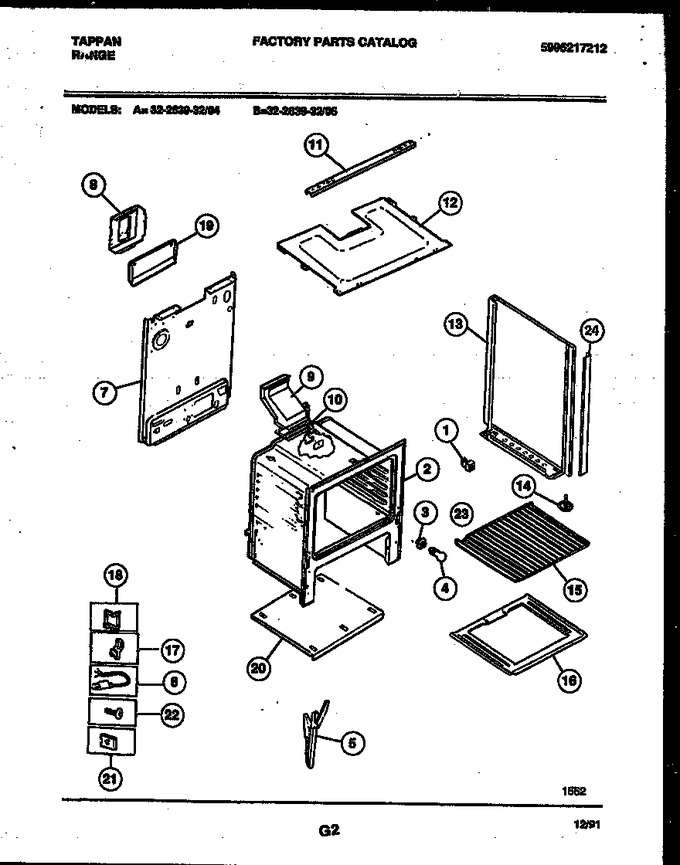

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	3014073		Socket-oven Light		Appelez-nous	-
4	5303208582		Light Bulb		Appelez-nous	-
5	316007000		Channel-hinge Door		Appelez-nous	-
6	5304534377		Cord, Power   (Replaces: 3202006)				$ 26.85
7	3203082		Back-main		Appelez-nous	-
8	3131660		Shield, Rear Wall		Appelez-nous	-
9	3131909		Flue		Appelez-nous	-
10	08067965		Gasket-flue		Appelez-nous	-
11	3203441		Channel-burner Supt		Appelez-nous	-
12	3204962		Burner Box		Appelez-nous	-
13	5303269544		Pnl-b/s-black-rh		Appelez-nous	-
14	5303203397		Screw, Leveling (4)				$ 14.49
15	3131973		Rack, Oven (2)		Appelez-nous	-
16	5303212540		Bottom, Oven		Appelez-nous	-
17	08010556		Clip-tubing		Appelez-nous	-
18	08067962		Fstnr, Wire		Appelez-nous	-
19	3202799		Shield, Flue		Appelez-nous	-
20	5303270160		Base-broil		Appelez-nous	-
21	3203010		Fstnr-hinge   (Replaces: 5303012323)				$ 14.89
22	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
23	5303271606		Housing-light		Appelez-nous	-
24	5303051326		Trim		Appelez-nous	-
*56926	19100200010		Diagram-wiring		Appelez-nous	-
13A	5303269546		Pnl-b/s-black-lh		Appelez-nous	-
15A	08010570		Fastener, Leveling Leg Tee Nut		Appelez-nous	-
16A	3017142		Insul - Oven Wrap (non-illustrated)				$ 193.50
16B	3203541		Insul - Oven Back (non-illustrated)		Appelez-nous	-
17A	08067961		Fastener-power Cord		Appelez-nous	-
19A	3014226		Supt - Oven Bttm (2) (non-illustrated)		Appelez-nous	-
21A	5303015372		Cover, Front Main (non-illustrated)		Appelez-nous	-
22A	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
22B	3018607		Cover-plate (non-illustrated)				$ 10.50
22C	3934056		Anti, Tip Bracket (non-illustrated)		Appelez-nous	-
22D	3131192		Cover, Rear Wall (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
