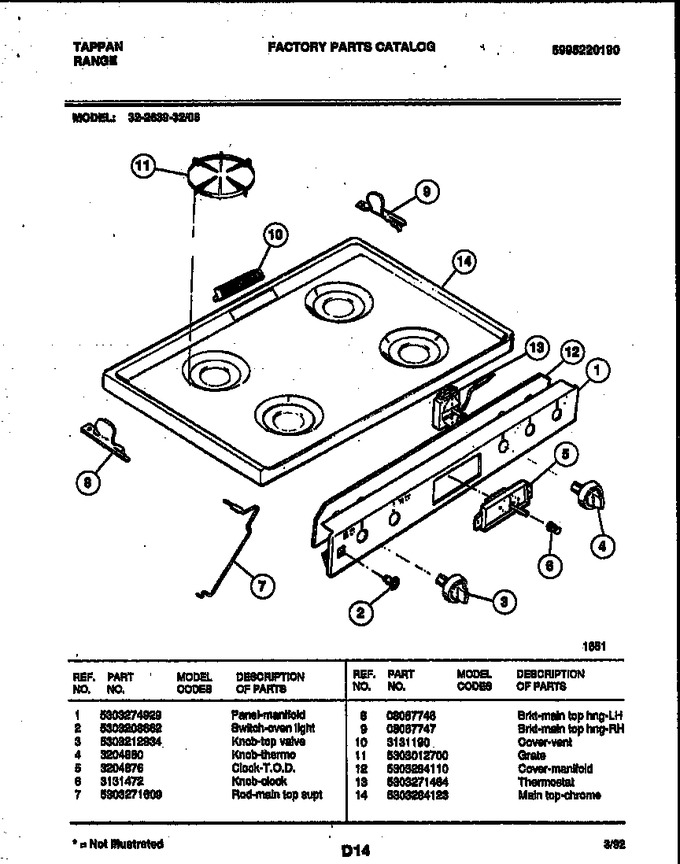

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303274929 | Panel-manifold |
|
- | |||||
| 2 | 5303208662 | Switch-oven Light |
|
- | |||||
| 3 | 5303212934 | Knob-top Valve |
|
- | |||||
| 4 | 3204880 | Knob - Thermo |
|
- | |||||
| 5 | 3204876 | Clock - T.o.d. |
|
- | |||||
| 6 | 3131472 | Knob-clock |
|
- | |||||
| 7 | 5303271609 | Rod - Maintop Supt |
|
- | |||||
| 8 | 08067746 | Brkt-main Top Hng Lh |
|
- | |||||
| 9 | 08067747 | Brkt-main Top Hng Rh |
|
- | |||||
| 10 | 3131190 | Cover-vent |
|
- | |||||
| 11 | 5303012700 | Grate |
|
- | |||||
| 12 | 5303284110 | Cover-manifold |
|
- | |||||
| 13 | 316032411 | Thermostat (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 14 | 5303284123 | Main Top-chrome |
|
- |
