SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (3442xrx)
04 - Door/drawer (ser. Pre. 30 3442xrx)

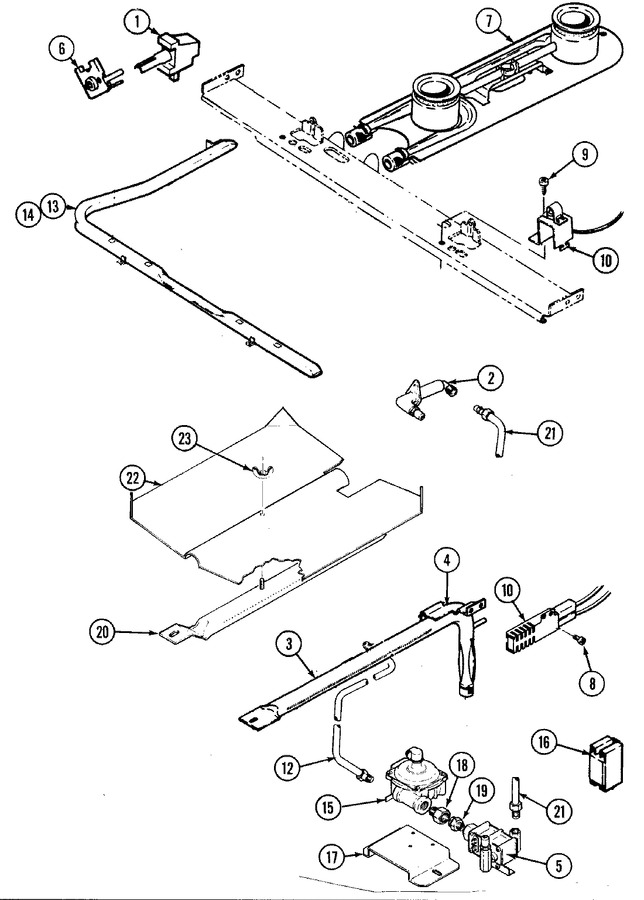

05 - Gas Controls
06 - Oven/base
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P044-60 | Screw, Valve | 01 |
|
- | ||||
| 1 | 7502P174-60 | Valve, Top Burner | 01 |
|
- | ||||
| 1 | 74002383 | Valve, Burner | 38 |
|
- | ||||
| 2 | 7507P088-60 | Fitting, Broil Burner | 01 |
|
- | ||||
| 2 | 3605F186-45 | Plate, Fitting | 01 |
|
- | ||||
| 3 | 3403D043-45 | Burner, Bake | 01 |
|
- | ||||
| 4 | 3807F446-45 | Support, Burner | 01 |
|
- | ||||
| 5 | WP74006427 | Valve, Oven (Replaces: 7501P097-60) | 01 |
|
$ 313.44 | ||||
| 6 | 7403P284-60 | Switch, Burner | 01 |
|
$ 55.80 | ||||
| 6 | 74002384 | Switch, Igniter | 38 |
|
- | ||||
| 7 | 3412A004-19 | Burner, Top | 01 |
|
- | ||||
| 7 | 74003332 | Burner, Top | 38 |
|
$ 108.84 | ||||
| 8 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 | ||||
| 9 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 10 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 01 |
|
Immediately | $ 60.44 | |||
| 11 | 7432P031-60 | Igniter, Top (rt) | 01 |
|
- | ||||
| 11 | 7432P008-60 | Igniter, Top (lt) | 01 |
|
- | ||||
| 12 | 1555258K | 3/8`` Nut & Ferrule | 01 |
|
- | ||||
| 12 | 3414F103-44 | Tubing, Regulator/pipe (3/8``) | 01 |
|
- | ||||
| 13 | 7513P105-60 | Pipe, Manifold | 01 |
|
- | ||||
| 14 | 7103P130-60 | Nut, Loxit (3/8``) | 01 |
|
$ 8.20 | ||||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 15 | WP74006429 | Regulator, Pressure W/fitting (Replaces: 7510P050-60) | 01 |
|
$ 282.77 | ||||
| 16 | 7431P006-60 | Module, Spark | 01 |
|
- | ||||
| 16 | 3807F432-45 | Support, Spark Module | 01 |
|
- | ||||
| 17 | 8020P007-60 | Bracket, Regulator | 01 |
|
- | ||||
| 18 | 7507M125-60 | Union Pipe Fitting (female) | 01 |
|
- | ||||
| 19 | 7507M124-60 | Union Pipe (male) | 01 |
|
- | ||||
| 20 | 3403D024-45 | Burner, Broil | 01 |
|
- | ||||
| 21 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 01 |
|
- | ||||
| 21 | 1555258K | 3/8`` Nut & Ferrule | 01 |
|
- | ||||
| 22 | 3601F217-45 | Baffle, Broil | 01 |
|
- | ||||
| 23 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 24 | 5125A312-60 | Harness, Loose/burner Box | 01 |
|
- | ||||
| 24 | 5195D111-60 | Harness | 01 |
|
- |
