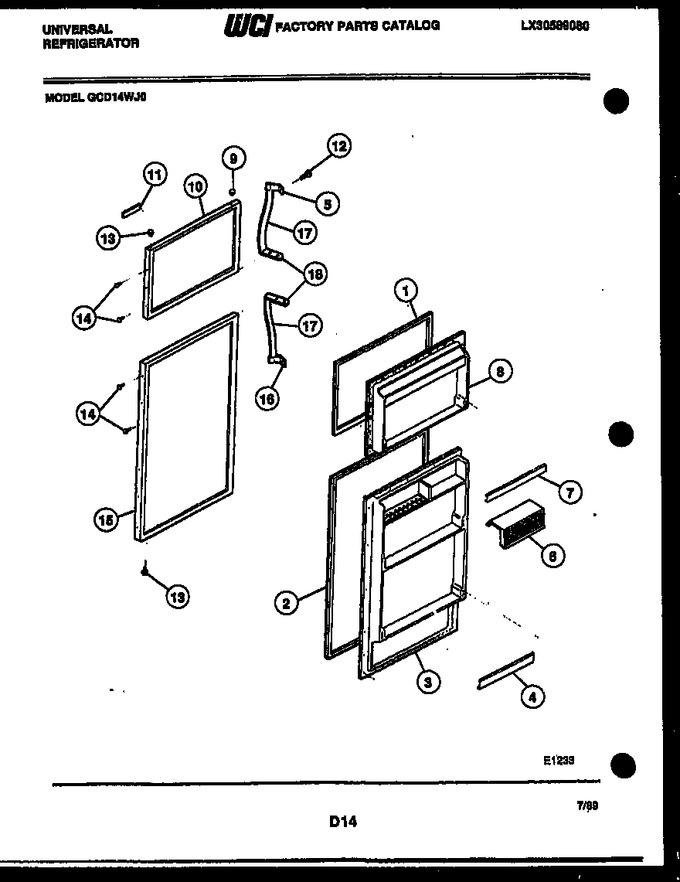

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-03		Gasket, Freezer Door		Appelez-nous	-
2	G186932-02		Gasket-refr Door		Appelez-nous	-
3	3001540		Inner Panel-refr		Appelez-nous	-
3	G162585		Screw		Appelez-nous	-
4	3001539		Door Rack-refr (2)		Appelez-nous	-
5	G179800		Handle End-top		Appelez-nous	-
6	3205767		Butter Door		Appelez-nous	-
7	3001511		Door Rack-frzr		Appelez-nous	-
8	3001528		Inner Panel-freezer		Appelez-nous	-
8	G162585		Screw		Appelez-nous	-
9	G169332-09		Button Plug, Wheat		Appelez-nous	-
9	G169332-10		Button-plug, Coffee		Appelez-nous	-
9	G169332-11		Button Plug, Almond		Appelez-nous	-
9	G169332-08		Button Plug-avocado		Appelez-nous	-
9	G169332-01		Button Plug, White		Appelez-nous	-
10	G186221		Freezer Door-white		Appelez-nous	-
10	G186221-10		Freezer Door-coffee		Appelez-nous	-
10	G186221-09		Freezer Door-wheat		Appelez-nous	-
10	G186221-11		Freezer Door-almond		Appelez-nous	-
10	G186221-08		Freezer Door-avoc		Appelez-nous	-
11	G153407-60		Tape-nameplate Mounting (non-illustrated)		Appelez-nous	-
11	G171161-01		Nameplate-frame		Appelez-nous	-
12	G185566		Screw		Appelez-nous	-
13	G183138		Hinge Bearing (8)		Appelez-nous	-
14	G162977-08		Button Plug-avocado		Appelez-nous	-
14	G162977-11		Button Plug-almond		Appelez-nous	-
14	G162977-10		Button Plug-coffee		Appelez-nous	-
14	G162977-09		Button Plug-wheat		Appelez-nous	-
14	G162977-01		Button Plug-white		Appelez-nous	-
15	G186234-09		Refr Door-wheat		Appelez-nous	-
15	G186234-10		Refr Door-coffee		Appelez-nous	-
15	G186234-11		Refr Door-almond		Appelez-nous	-
15	G186234		Refr Door-white		Appelez-nous	-
15	G186234-08		Refr Door-avocado		Appelez-nous	-
16	G179801		Handle End-bottom		Appelez-nous	-
17	3001531		Handle-grip (2)		Appelez-nous	-
18	G187329-01		Handle End (2)		Appelez-nous	-
*43986	G89643		Insulation-door (bulk)		Appelez-nous	-
