SELECT A DIAGRAM

01 - Cover

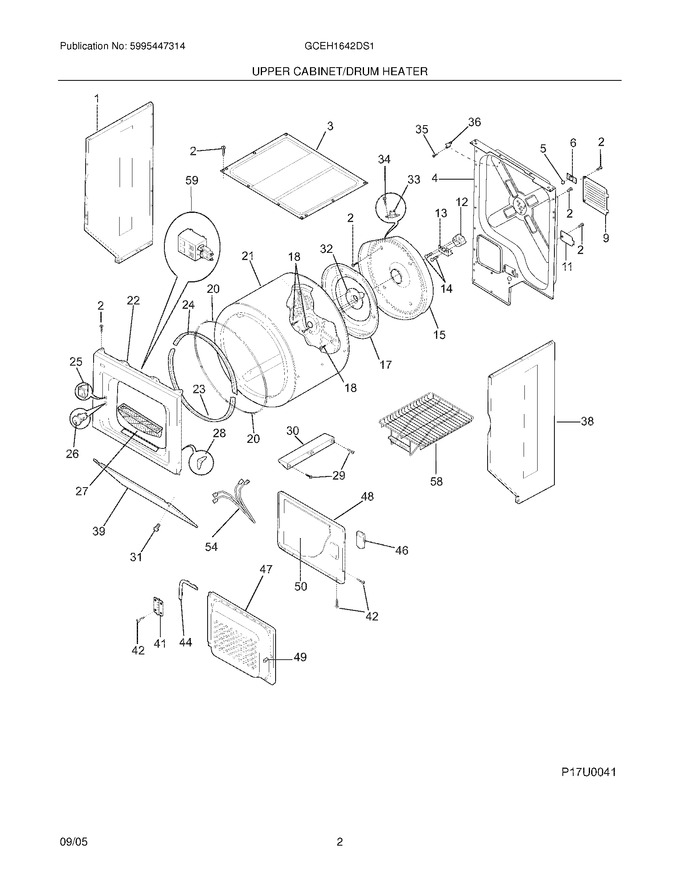

03 - Upper Cabinet/drum Heater


05 - Motor/blower/belt


07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131084710		Panel,white ,left Side				$ 157.51
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	131883301		Panel,top				$ 276.98
4	131752302		Panel,rear ,steel ,galvanized		Appelez-nous	-
5	5303281019		Ball,grounding				$ 16.30
6	5303281020		Clip,ball ,steel ,flat Nut				$ 17.01
9	3204249		Panel,motor Access ,rear		Appelez-nous	-
11	3204250		Cover-terminal Block				$ 34.91
12	131825900		Bearing-drum Support			Immediately	$ 10.97
13	131724301		Bracket,bearing Support   (Replaces: 131724300)			Immediately	$ 25.66
14	131205400		Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive				$ 12.76
17	3204254		Baffle,heater Shield				$ 129.00
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	137513300		Glide-drum   (Replaces: 131963900)			Immediately	$ 36.68
21	134122552		Drum,dryer ,stainless Steel ,service Kit				$ 398.53
22	131636280		Panel,front ,white ,with Lamp Hole				$ 223.00
23	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 35.87
24	5303937182		Seal,felt ,upper   (Replaces: 134036400)			Immediately	$ 26.89
25	131658800		Door Catch			Immediately	$ 68.38
27	5304516871		Lint Trap   (Replaces: 131359600)			Immediately	$ 35.83
28	134440000		Clip,guide ,(3)		Appelez-nous	-
29	131382300		Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special			Immediately	$ 13.46
30	5304405283		Vane-straight-gray				$ 57.38
31	131202300		Screw,10-16ab X 0.625			Immediately	$ 13.46
32	131777700		Shaft,drum Support ,ballhitch			Immediately	$ 71.87
34	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
35	131892100		Screw,6-20b X 0.230		Appelez-nous	-
38	131084810		Panel,white ,right Side				$ 94.42
39	137546910		Panel,access ,white ,front   (Replaces: 131084402)				$ 184.19
41	134222900		Hinge,dryer Door				$ 22.68
42	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
44	137551901		Gasket,door Seal   (Replaces: 131129900)			Immediately	$ 41.00
46	131789400		Handle-door, White			Immediately	$ 63.79
47	134406203		Panel,inner Door ,white		Appelez-nous	-
48	131789303		Panel,outer Door ,white				$ 168.47
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
50	134535300		Insulator,heat Shield ,outer Door				$ 60.25
58	134121600		Rack,drying		Appelez-nous	-
F15	131475320		Heater Assy,w/housing   (Replaces: 131475300)			Immediately	$ 133.40
F26	134813601		Switch,door ,with Drum Light   (Replaces: 131843101)			Immediately	$ 33.09
F33	3204267		Thermostat-safety			Immediately	$ 53.49
F36	134120900		Thermal Limiter			Immediately	$ 13.21
F54	134403200		Wiring Harness,door Switch ,with Light		Appelez-nous	-
F59	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 73.00
NI	3281126		Clip, Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
