SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

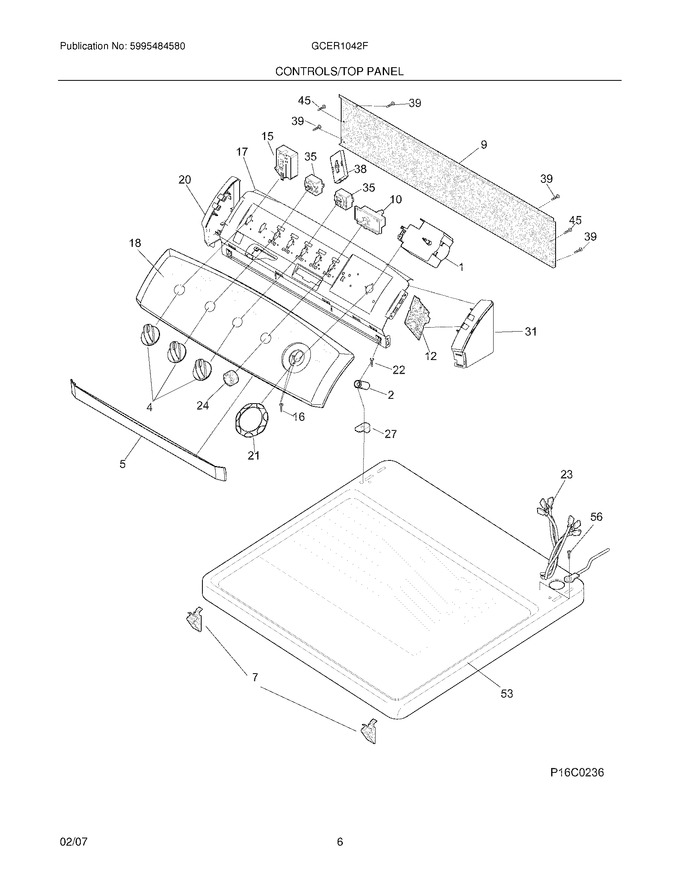

07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134034912		Knob,rotary ,graphite/silver		Appelez-nous	-
5	134019920		Closure,console ,silver ,front				$ 58.38
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	131992900		Panel,backsheet ,console				$ 72.66
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131993040		Bracket,control Mtg.				$ 46.83
18	134875700		Panel,trimplate ,white ,console Front		Appelez-nous	-
20	134019621		End Cap,silver ,lh		Appelez-nous	-
21	134886702		Knob,timer ,graphite/silver   (Replaces: 134035502)				$ 58.17
22	131266330		Screw,8-18 X 1.250				$ 7.63
24	131111500		Button,start Switch ,black				$ 13.55
27	131197000		Clip-console Mtg				$ 13.62
31	134019620		End Cap,silver ,rh		Appelez-nous	-
39	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F1	131930600		Timer				$ 320.98
F10	131469000		Switch-push/start			Immediately	$ 55.81
F12	134216300		Control Board,moisture Sensor				$ 67.62
F15	134398600		Switch,temperature ,4 Posn Rotary				$ 33.46
F23	134124300		Wiring Harness,main		Appelez-nous	-
F35	131243200		Switch,2 Position		Appelez-nous	-
F38	131959200		Beeper Continuous Low Tone				$ 134.82

    View Diagram in Separate Window       Print Part List
