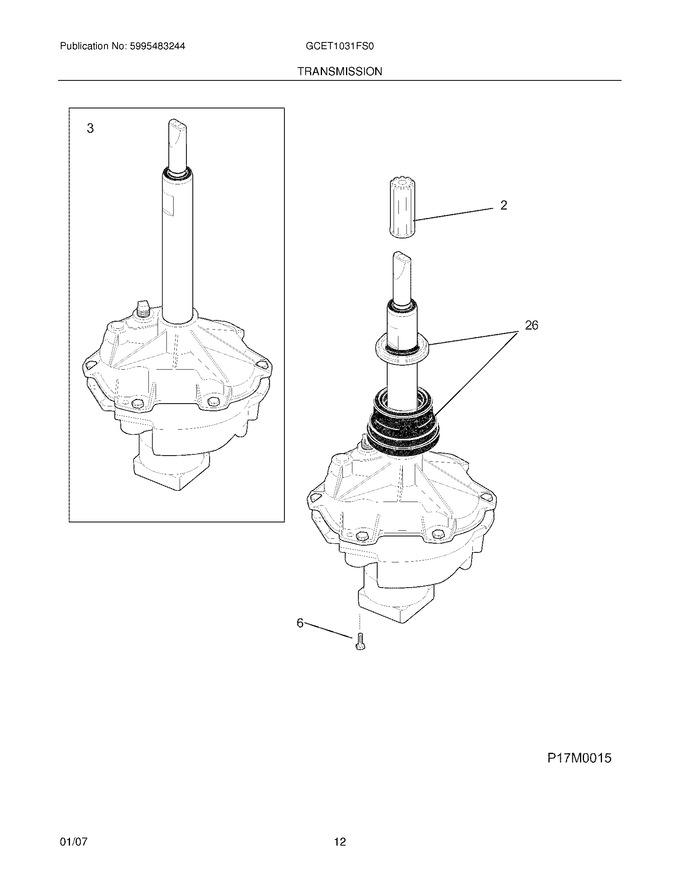

13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	134197900		Screw,hex Washer Head ,1/4-20 X 0.437				$ 15.75
F2	134418700		Hub,drive ,agitator				$ 76.55
F26	5303279394		Seal Assy,tub ,transmission				$ 85.72
F3	134736400		Transmission,service Kit				$ 875.74
NI	134831100		Energy Guide		Appelez-nous	-
