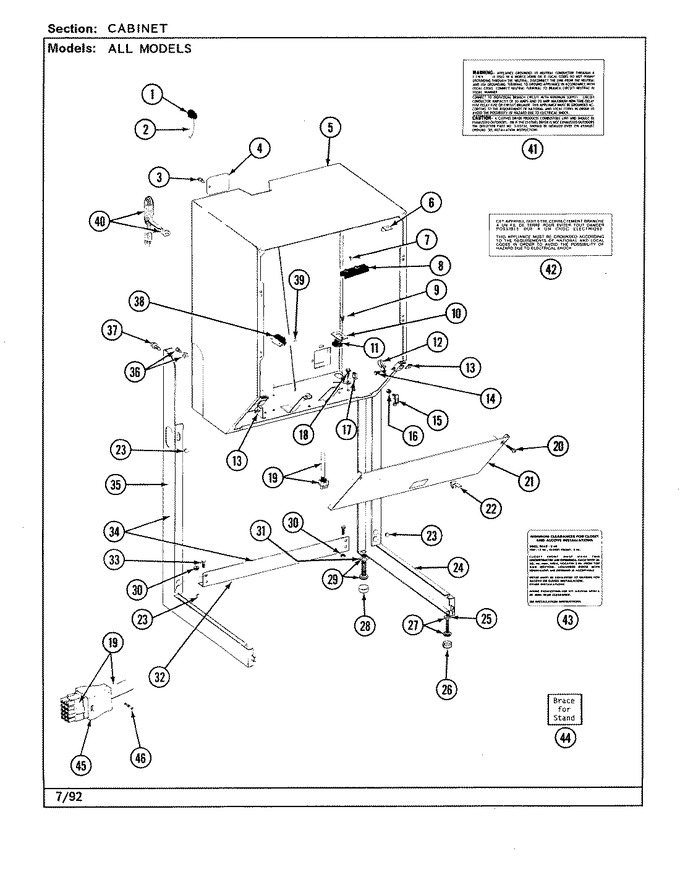

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | Y313561 | Screw----na | A0 |
|
$ 5.27 | ||||
| 4 | 314470 | Cover, Terminal | A0 |
|
- | ||||
| 5 | 308055 | Cabinet (wht) | A0 |
|
- | ||||
| 6 | 312548 | Fastener-access Panel To Ca | A0 |
|
- | ||||
| 8 | 400008 | Block, Terminal | A0 |
|
$ 29.20 | ||||
| 9 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | A0 |
|
$ 6.75 | ||||
| 10 | 314532 | Mounting Bracket | A0 |
|
- | ||||
| 11 | 215948 | Grommet | A0 |
|
- | ||||
| 12 | 315264 | Cable Clamp | A0 |
|
- | ||||
| 13 | 215075 | Fastener,cntrl Pnl To Console | A0 |
|
$ 4.83 | ||||
| 14 | Y310632 | Screw | A0 |
|
- | ||||
| 15 | 314489 | Guide, Pin | A0 |
|
- | ||||
| 16 | 214872 | Palnut, End Cap | A0 |
|
- | ||||
| 17 | Y313262 | Retainer, Wire Harness | A0 |
|
- | ||||
| 18 | WP489399 | Screw (Replaces: 211252) | A0 |
|
$ 6.26 | ||||
| 19 | 208213 | Wire Harness | A0 |
|
- | ||||
| 20 | 314477 | Screw, Access Panel | A0 |
|
- | ||||
| 21 | 307844 | Access Panel (wht) | A0 |
|
- | ||||
| 22 | 314482 | Fastener, Spring | A0 |
|
- | ||||
| 23 | 314498 | Pad, Dryer Leg | A0 |
|
- | ||||
| 24 | 306073 | Leg Assm, (rt-wht) | A0 |
|
- | ||||
| 25 | WP62739 | Nut (Replaces: Y052740) | A0 |
|
$ 6.85 | ||||
| 26 | Y314137 | Foot, Rubber | A0 |
|
$ 14.08 | ||||
| 27 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | A0 |
|
$ 7.16 | ||||
| 28 | WP210684 | Foot, Rubber (Replaces: 210684) | A0 |
|
Immediately | $ 14.09 | |||
| 29 | 22003428 | Leg, Adjustable (w/nut) (Replaces: Y302699) | A0 |
|
Immediately | $ 14.41 | |||
| 30 | Y052721 | Nut | A0 |
|
$ 21.38 | ||||
| 31 | WP210385 | Nut, Lock (Replaces: 210385) | A0 |
|
$ 6.26 | ||||
| 32 | 314499 | Brace | A0 |
|
- | ||||
| 33 | 214354 | Screw | A0 |
|
- | ||||
| 34 | Y306110 | Stand, Dryer (complete) (wht) | A0 |
|
- | ||||
| 35 | 306074 | Leg Assm, Left-white | A0 |
|
- | ||||
| 36 | W10850756 | Screw & Washer Assy. (Replaces: 303846) | A0 |
|
$ 6.98 | ||||
| 37 | 314663 | Screw | A0 |
|
- | ||||
| 38 | WP694419 | Buzzer - Non-adjustable (Replaces: 305205) | A0 |
|
$ 114.90 | ||||
| 39 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | A0 |
|
$ 6.75 | ||||
| 42 | 214519 | Label, Electrical Instruction | A0 |
|
- | ||||
| 43 | 314486 | Label | A0 |
|
- | ||||
| 44 | 306128 | Brace For Stand-accessory | A0 |
|
- | ||||
| 45 | 215960 | Strain Relief | A0 |
|
- | ||||
| 46 | 215953 | Screw | A0 |
|
- |
