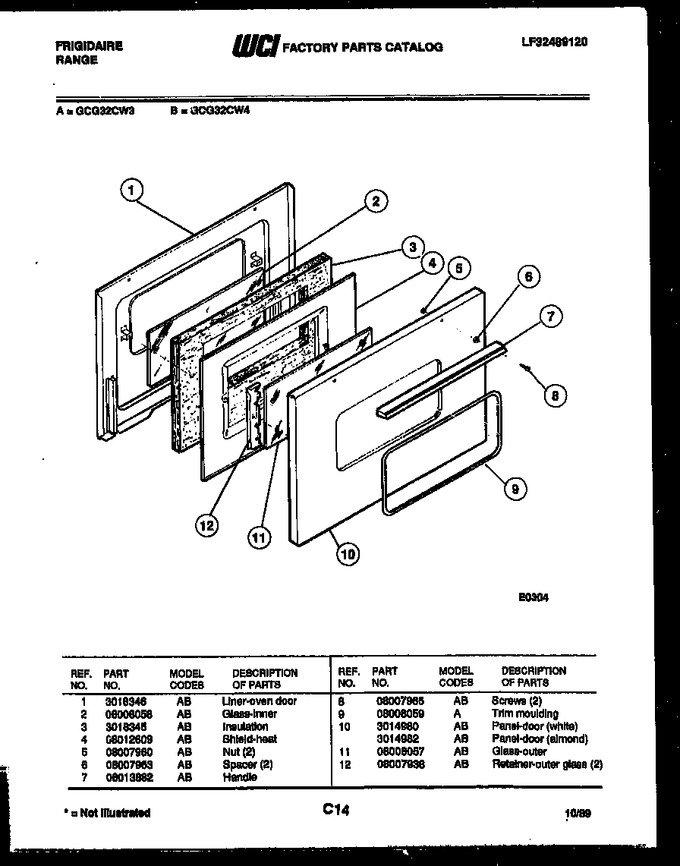

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018346 | Liner-oven Door |
|
- | |||||
| 2 | 08008058 | Glass-inner |
|
- | |||||
| 3 | 3018345 | Insulation |
|
- | |||||
| 4 | 08012609 | Shield-heat |
|
- | |||||
| 5 | 08007960 | Nut (2) |
|
- | |||||
| 6 | 08007963 | Spacer (2) |
|
- | |||||
| 7 | 08013882 | Handle |
|
- | |||||
| 8 | 08007965 | Screws (2) |
|
- | |||||
| 9 | 08008059 | Trim Moulding |
|
- | |||||
| 10 | 3014980 | Panel-door (white) |
|
- | |||||
| 11 | 08008057 | Glass - Outer |
|
- | |||||
| 12 | 08007938 | Retainer-outer Glass (2) |
|
- |
