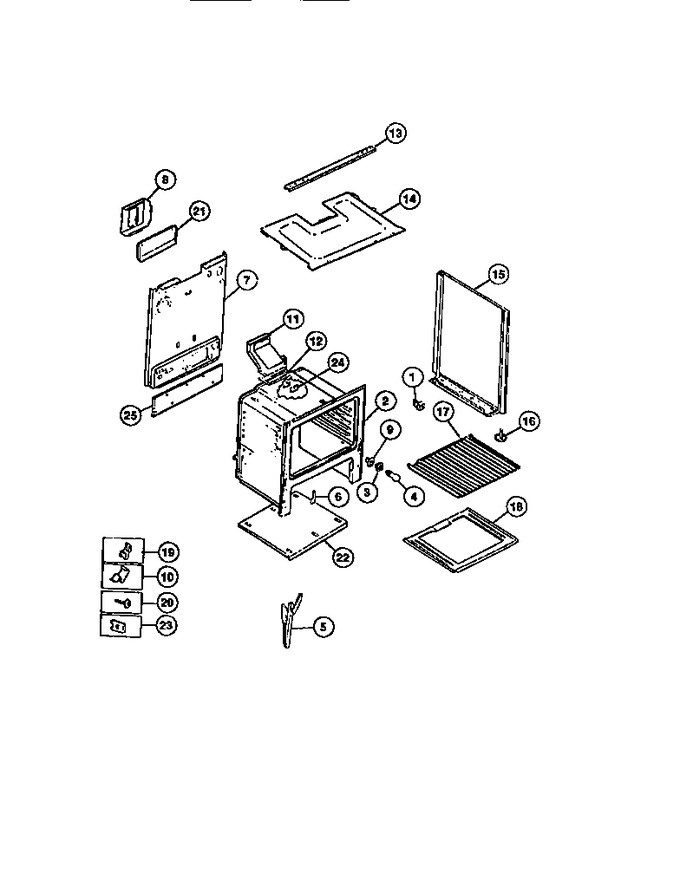

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3014073 | Socket-oven Light |
|
- | |||||
| 4 | 5303208582 | Light Bulb |
|
- | |||||
| 5 | 5303131569 | Channel-door Hinge (2) |
|
- | |||||
| 6 | 5304534377 | Cord, Power (non-illustrated) (Replaces: 3202006) |
|
$ 26.85 | |||||
| 6 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 7 | 3203082 | Back-main |
|
- | |||||
| 8 | 3131660 | Shield, Rear Wall |
|
- | |||||
| 9 | 3051511 | Housing-oven Light |
|
$ 60.22 | |||||
| 10 | 316282700 | Screw, Oven Bottom (Replaces: 3131732) |
|
$ 9.93 | |||||
| 11 | 3131904 | Flue |
|
- | |||||
| 12 | 08067965 | Gasket-flue |
|
- | |||||
| 13 | 3203441 | Channel, Burner Support |
|
- | |||||
| 14 | 3204962 | Burner Box |
|
- | |||||
| 15 | 3205624 | Panel Bodyside-rh-almond |
|
- | |||||
| 15 | 3205621 | Panel Bodyside-lh-almond |
|
- | |||||
| 16 | 5303203397 | Screw, Leveling (4) |
|
$ 14.49 | |||||
| 17 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 18 | 3011519 | Bottom, Open |
|
- | |||||
| 18 | 3203541 | Insulation, Oven Back (non-illustrated) |
|
- | |||||
| 18 | 3017142 | Insulation, Oven Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 19 | 08067961 | Fastener-power Cord |
|
- | |||||
| 19 | 5303011805 | Clip-thermostat |
|
- | |||||
| 20 | 08067962 | Fastener-wire |
|
- | |||||
| 21 | 3014226 | Support-oven Bottom, (non-illustrated) |
|
- | |||||
| 21 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 21 | 3131348 | Shield-flue |
|
- | |||||
| 22 | 3131180 | Base, Broil |
|
- | |||||
| 22 | 3934056 | Anti, Tip Bracket (non-illustrated) |
|
- | |||||
| 22 | 3131244 | Cover-power Cord, (non-illustrated) |
|
- | |||||
| 23 | 3203010 | Fastener, Hinge (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 23 | 5303015372 | Cover, Front Main (non-illustrated) |
|
- | |||||
| 24 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 24 | 3202799 | Shield-flue, (non-illustrated) |
|
- | |||||
| 24 | 3203455 | Shield-top (non-illustrated) |
|
- | |||||
| 25 | 3131252 | Shield, Lower Rear Wall |
|
- | |||||
| *68042 | 241T017P10 | Tee Nut - Leveler Leg |
|
- |
