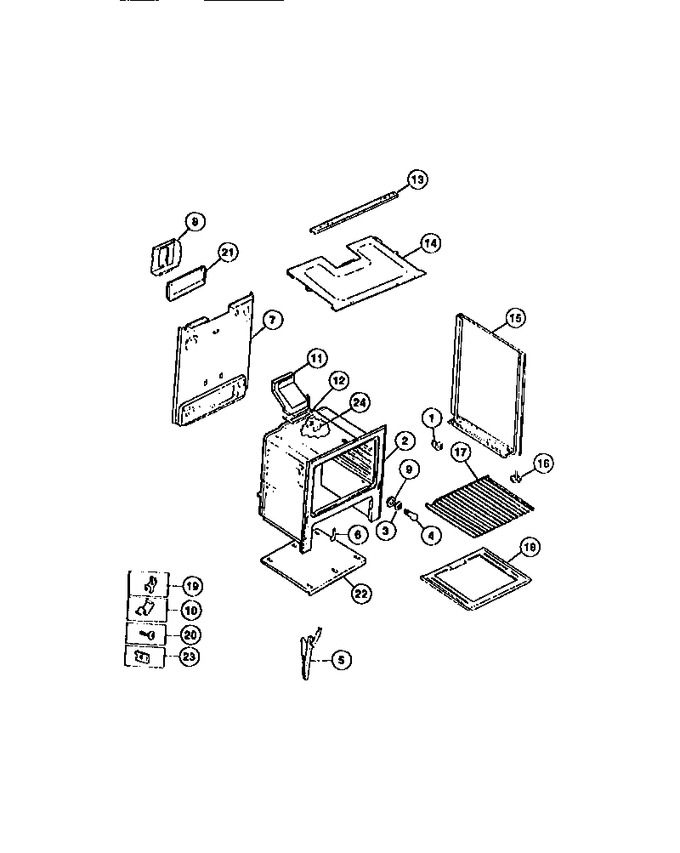

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3014073 | Socket-oven Light |
|
- | |||||
| 4 | 5303208582 | Light Bulb |
|
- | |||||
| 5 | 316007001 | Channel-door Hinge (2) |
|
$ 234.55 | |||||
| 6 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 7 | 3203082 | Back-main |
|
- | |||||
| 8 | 3131660 | Shield, Rear Wall |
|
- | |||||
| 9 | 5303271606 | Housing,oven Light |
|
- | |||||
| 10 | 316282700 | Screw, Oven Bottom (Replaces: 3131732) |
|
$ 9.93 | |||||
| 11 | 3131904 | Flue |
|
- | |||||
| 12 | 08067965 | Gasket-flue |
|
- | |||||
| 13 | 3203441 | Channel, Burner Support |
|
- | |||||
| 14 | 3204962 | Burner Box |
|
- | |||||
| 15 | 5303269543 | Panel-bodyside Rh (almond) |
|
- | |||||
| 15 | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 16 | 5303203397 | Screw, Leveling (4) |
|
$ 14.49 | |||||
| 17 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 18 | 5303212540 | Bottom - Open |
|
- | |||||
| 19 | 5303285144 | Clip, Thermostat |
|
$ 5.30 | |||||
| 20 | 08067962 | Fastener-wire |
|
- | |||||
| 21 | 5303280614 | Shield-flue |
|
- | |||||
| 22 | 5303270160 | Base-broil |
|
- | |||||
| 23 | 3203010 | Fastener, Hinge (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 24 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| *32680 | 5304534377 | Cord, Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| *32681 | 3017142 | Insulation-oven Wrap |
|
$ 193.50 | |||||
| *32682 | 3203541 | Insulation, Oven Back |
|
- | |||||
| *32683 | 08067961 | Fastener-power Cord |
|
- | |||||
| *32684 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *32685 | 3014226 | Support-oven Bottom |
|
- | |||||
| *32686 | 3934056 | Anti-tip Bracket |
|
- | |||||
| *32687 | 3131244 | Cover, Power Cord |
|
- | |||||
| *32688 | 5303015372 | Cover, Front Main |
|
- | |||||
| *32689 | 3202799 | Shield, Flue |
|
- | |||||
| *32690 | 3203455 | Shield-top |
|
- | |||||
| *32691 | 08010570 | Fastener, Leveling Leg Tee Nut |
|
- | |||||
| *32692 | 19100180225 | Wiring Diagram-not For Purchase |
|
- |
