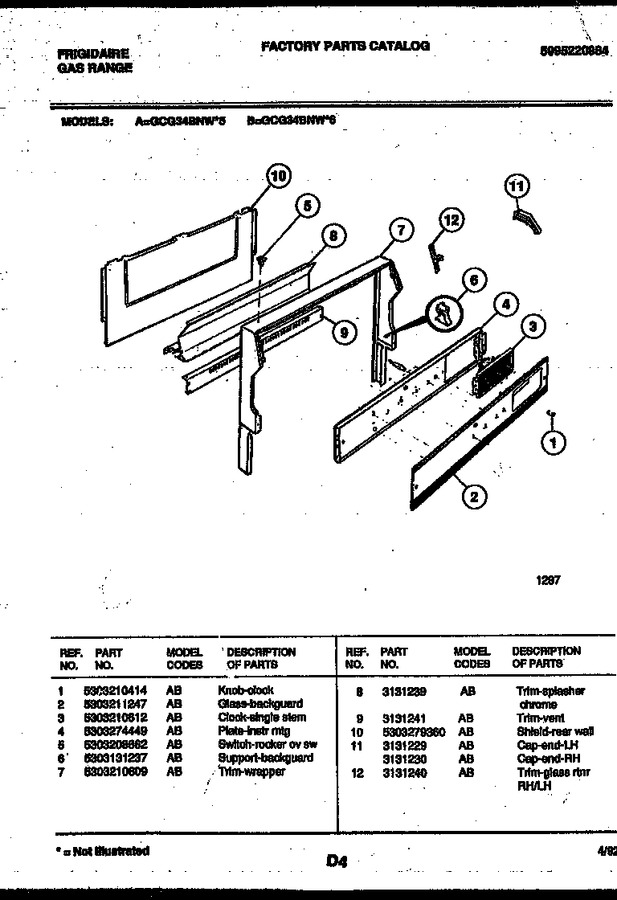

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210414 | Knob, Clock |
|
- | |||||
| 2 | 5303211247 | Glass-backguard |
|
- | |||||
| 3 | 5303210612 | Clock, Single Stem |
|
- | |||||
| 4 | 5303274449 | Plate-instr Mtg |
|
- | |||||
| 5 | 5303208662 | Switch-rocker Ov Sw |
|
- | |||||
| 6 | 5303131237 | Support, Backguard |
|
- | |||||
| 7 | 5303210609 | Trim, Wrapper |
|
- | |||||
| 8 | 3131239 | Trim-splasher Chrome |
|
- | |||||
| 9 | 3131241 | Trim-vent |
|
- | |||||
| 10 | 5303279360 | Shield-rear Wall |
|
- | |||||
| 11 | 3131229 | Cap, End (lh) |
|
- | |||||
| 12 | 3131240 | Trim-glass Rtnr Rh/lh |
|
- | |||||
| 11A | 3131230 | Cap, End (rh) |
|
- |
