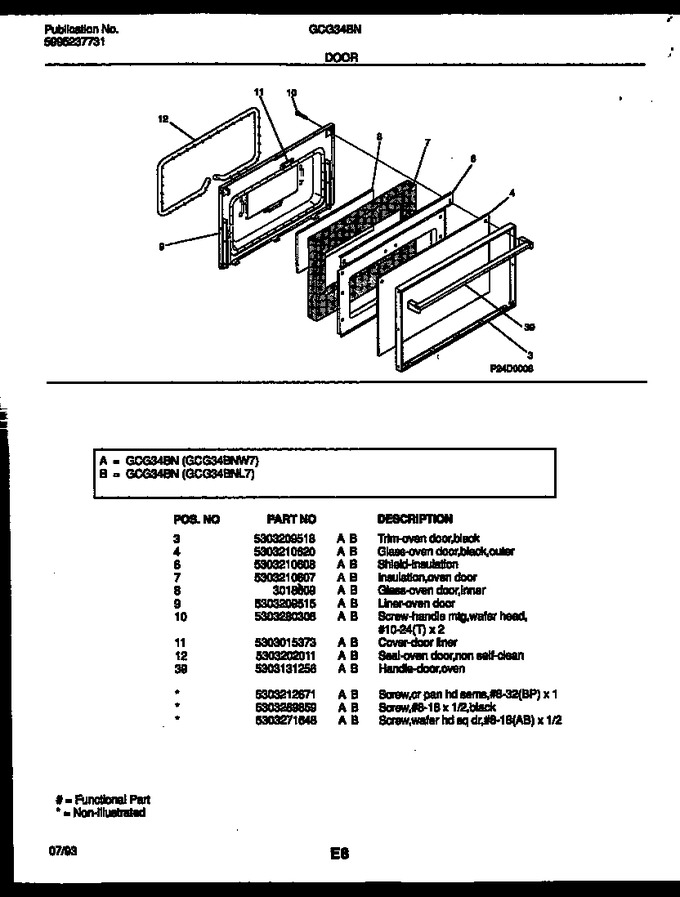

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303209518 | Trim-oven Door (black) |
|
- | |||||
| 4 | 5303210620 | Glass-oven Door, Black, Outer |
|
- | |||||
| 6 | 5303210608 | Shield-insulation |
|
- | |||||
| 7 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 8 | 3018609 | Glass-oven Door, Inner |
|
- | |||||
| 9 | 5303209515 | Liner-oven Door |
|
- | |||||
| 10 | 5303280308 | Screw-handle Mtg, Wafer Head, 10-24(t) X 2 |
|
$ 16.96 | |||||
| 11 | 5303015373 | Cover-door Liner |
|
- | |||||
| 12 | 5303202011 | Seal-oven Door, Non Self-clean |
|
$ 166.84 | |||||
| 39 | 5303131256 | Handle-door, Oven |
|
- | |||||
| *79895 | 5303269859 | Screw 8-18 X 1/2 Black |
|
- | |||||
| *79895 | 5303212671 | Screw, Cr Pan Hd Sems, 8, 32(bp) X 1 |
|
- | |||||
| *79896 | 5303271648 | Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2 |
|
Immediately | $ 13.46 |
