LSE7800ADE | TransGlobal : Appliance Model Lookup

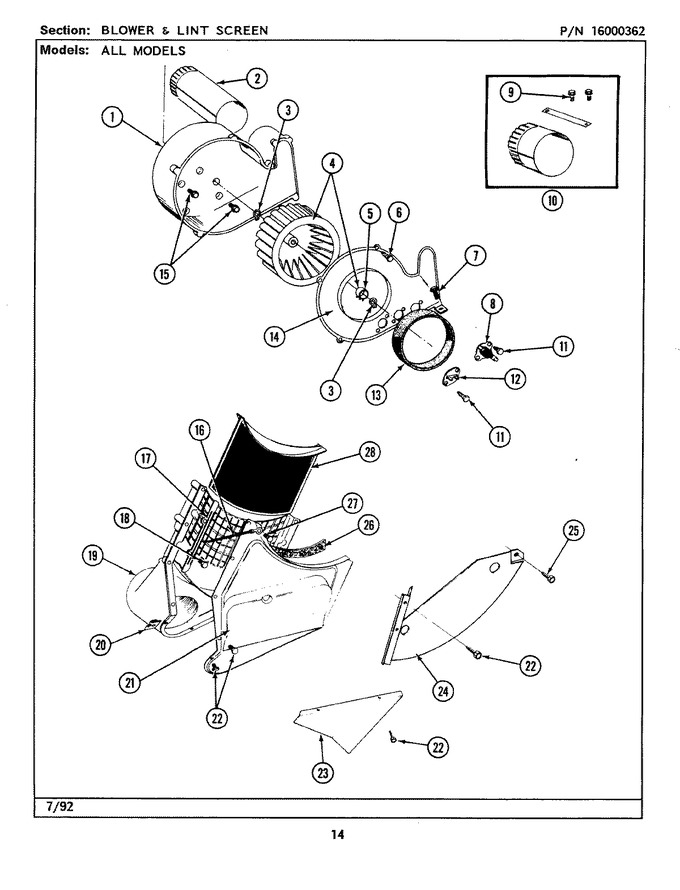

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	Y312893	Housing, Blower	A5			$ 55.67
2	306637	Exhaust Duct Assembly	A5	Appelez-nous	-
3	WP9703438	Ring, Retaining (Replaces: 410233)	A5		Immediately	$ 3.81
4	Y303836	Blower Wheel Assembly & Clamp	A5		Immediately	$ 32.35
5	WP312967	Clamp, Blower Housing (Replaces: 312967)	A5		Immediately	$ 10.68
6	WPW10116751	Screw (Replaces: Y312961)	A5			$ 6.74
7	Y313561	Screw----na	A5			$ 5.27
8	Y308037	Thermostat	A5	Appelez-nous	-
9	Y310632	Screw	A5	Appelez-nous	-
10	8544761A	Duct W/bracket & Screws (Replaces: 306643)	A5			$ 22.81
11	WP90767	Screw (Replaces: 211294)	A5		Immediately	$ 7.04
12	WP306604	Cut-off, Thermal (Replaces: 306604)	A5		Immediately	$ 37.77
13	WPY312901	Seal, Blower (Replaces: Y312901)	A5			$ 60.70
14	314846	Cover, Blower Housing	A5	Appelez-nous	-
15	Y310632	Screw	A5	Appelez-nous	-
16	901220	Wire, Ground	A5	Appelez-nous	-
17	Y313795	Guide For Lint Screen	A5	Appelez-nous	-
18	WPW10116751	Screw (Replaces: Y312961)	A5			$ 6.74
19	314801	Outlet Duct & Grid	A5	Appelez-nous	-
20	488660	Fastener On Outlet Duct (Replaces: 315274)	A5	Appelez-nous	-
21	314485	Outlet Duct And Grid	A5	Appelez-nous	-
22	WPW10116751	Screw (Replaces: Y312961)	A5			$ 6.74
23	315239	Shield For Outlet Duct	A5	Appelez-nous	-
24	315238	Shield	A5	Appelez-nous	-
25	310207	Screw, No.6 X 1/4 Inch	A5	Appelez-nous	-
26	Y313796	Lint Seal	A5			$ 5.85
27	WPW10116751	Screw (Replaces: Y312961)	A5			$ 6.74
27	310557	Washer	A5	Appelez-nous	-
28	WP33001003	Lint Screen (Replaces: Y306666)	A5		Immediately	$ 43.47
