SELECT A DIAGRAM
02 - Control Panel

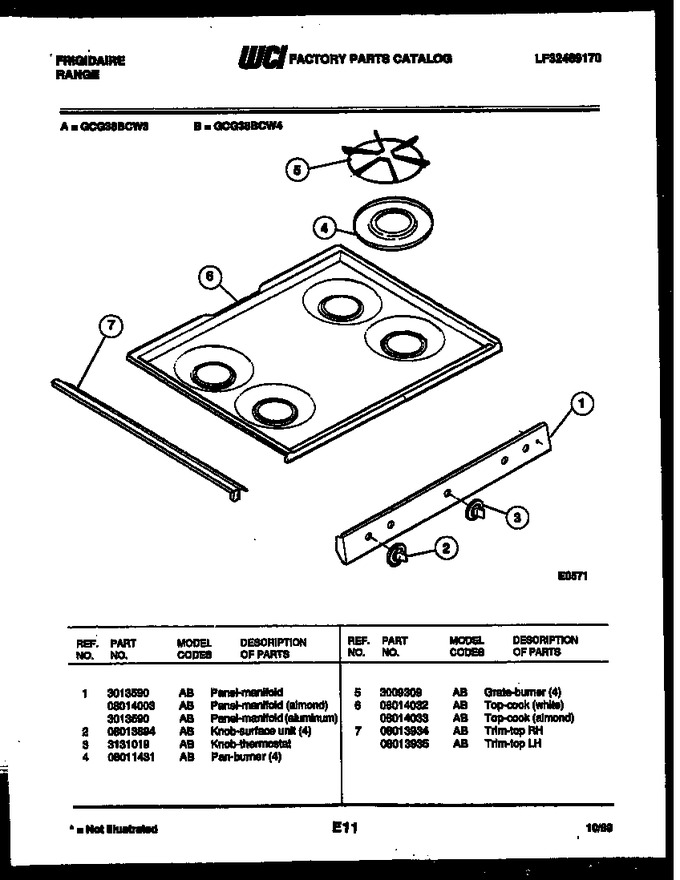

03 - Cooktop Parts
04 - Door Parts
05 - Body Parts
06 - Burner, Manifold And Gas Control
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014003 | Panel-manifold (almond) |
|
- | |||||
| 1 | 3013590 | Panel Manifold |
|
- | |||||
| 2 | 08013894 | Knob-surface Unit (4) |
|
- | |||||
| 3 | 3131019 | Knob - Thermostat |
|
- | |||||
| 4 | 08011431 | Pan-burner (4) |
|
- | |||||
| 5 | 3009309 | Grate-burner (4) |
|
- | |||||
| 6 | 08014033 | Top-cook (almond) |
|
- | |||||
| 7 | 08013934 | Trim-top Rh |
|
- | |||||
| 7A | 08013935 | Trim-top Lh |
|
- |
