02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Body Parts

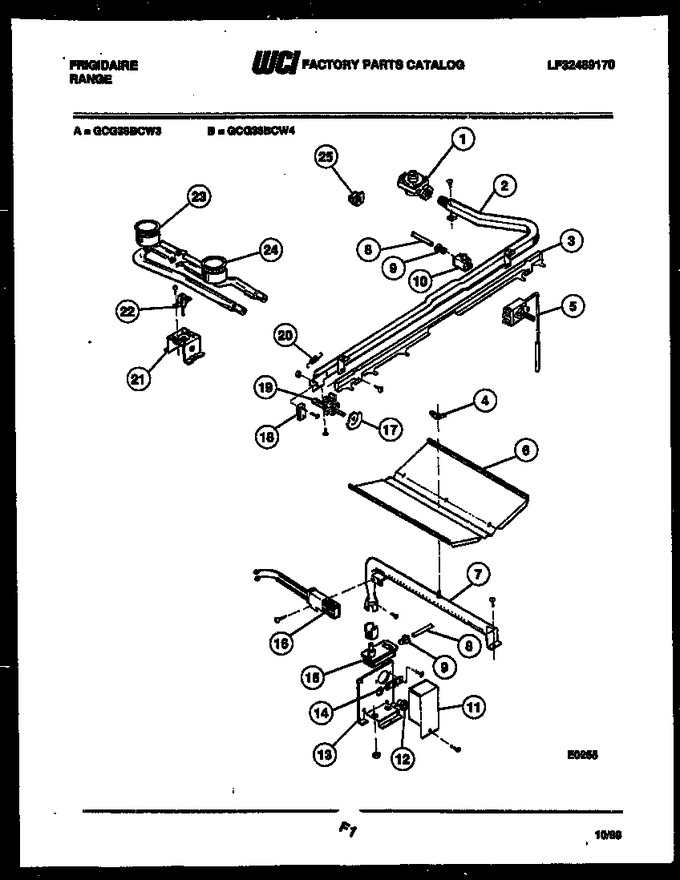

06 - Burner, Manifold And Gas Control
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007974 | Pressure Regulator |
|
- | |||||
| 2 | 08013906 | Manifold Pipe |
|
- | |||||
| 3 | 08014021 | Bar Slide |
|
- | |||||
| 4 | 08007979 | Nut - Wing |
|
- | |||||
| 5 | 08013926 | Thermostat |
|
- | |||||
| 6 | 3131061 | Baffle - Burner |
|
- | |||||
| 7 | 3202752 | Burner - Oven |
|
- | |||||
| 8 | 3009495 | Tube - Feed |
|
- | |||||
| 9 | 3131064 | Loxit-nut (2) |
|
- | |||||
| 10 | 3131099 | Valve - Shut Off |
|
- | |||||
| 11 | 3131080 | Cover-oven Valve |
|
- | |||||
| 12 | 08008051 | Bushing - Nylon Snap |
|
- | |||||
| 13 | 3131069 | Support - Oven Valve |
|
- | |||||
| 14 | 08007985 | Terminal Board |
|
- | |||||
| 15 | 08009419 | Valve - Oven Safety |
|
- | |||||
| 16 | 12400035 | Ignitor - Oven (Replaces: 08009420) |
|
Immediately | $ 60.44 | ||||
| 17 | 3131859 | Cam-top Burner |
|
- | |||||
| 18 | 3131094 | Switch - Micro |
|
- | |||||
| 19 | 3205761 | Valve-top Burner (4) |
|
- | |||||
| 20 | 3131096 | Spring - Slide Bar |
|
- | |||||
| 21 | 3203964 | Support-top Burner (2) |
|
- | |||||
| 22 | 3015196 | Ignitor - Top (2) |
|
- | |||||
| 23 | 3131079 | Burner - Rear (2) |
|
- | |||||
| 24 | 3131080 | Burner - Front (2) |
|
- | |||||
| 25 | 9126 | Clip - Capillary (2) |
|
$ 24.99 |
