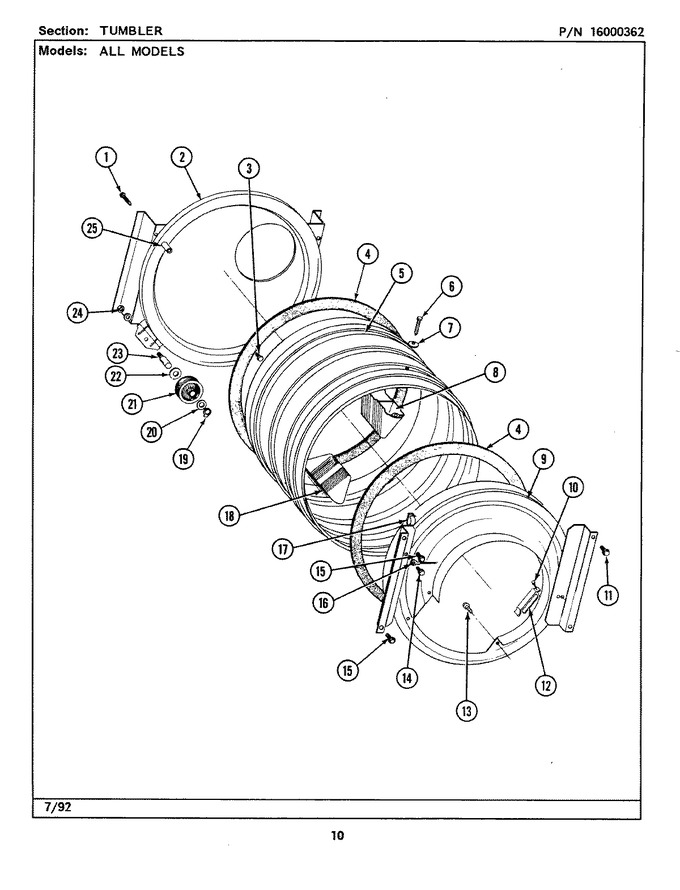

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313764		Screw	A5	Appelez-nous	-
2	Y306660		Tumbler Back	A5	Appelez-nous	-
3	WP90767		Screw   (Replaces: 211294)	A5		Immediately	$ 7.04
4	WP314820		Seal, Tumbler   (Replaces: 314820)	A5		Immediately	$ 30.66
5	Y306664		Tumbler Complete	A5	Appelez-nous	-
6	Y310759		Screw	A5			$ 5.75
7	314158		Washer	A5			$ 5.48
8	314807		Tumbler Baffle - Tall	A5	Appelez-nous	-
9	206670		Inlet Screen	A5	Appelez-nous	-
10	WP210720		Rivet   (Replaces: 210720)	A5			$ 12.14
11	Y313561		Screw----na	A5			$ 5.27
12	306508		Tumbler Bearing Kit	A5		Immediately	$ 20.77
13	WP3400065		Screw, Inlet Duct   (Replaces: Y314110)	A5		Immediately	$ 6.97
14	WP90767		Screw   (Replaces: 211294)	A5		Immediately	$ 7.04
15	310362		Screw-tumber Front To Cabinet	A5	Appelez-nous	-
16	901220		Wire, Ground	A5	Appelez-nous	-
17	Y310376		Clip, Wire Harness	A5	Appelez-nous	-
18	314806		Tumbler Baffle - Short	A5	Appelez-nous	-
19	WP9703438		Ring, Retaining   (Replaces: 410233)	A5		Immediately	$ 3.81
20	WP312535		Washer, Roller Shaft   (Replaces: 312535)	A5		Immediately	$ 10.25
21	12001541		Bearing & Roller Assembly   (Replaces: Y303373)	A5		Immediately	$ 27.92
22	WP312535		Washer, Spring (roller Shaft)   (Replaces: Y313347)	A5		Immediately	$ 10.25
23	Y312948		Shaft, Tumbler Roller	A5	Appelez-nous	-
24	WP33001443		Nut, Roller Shaft   (Replaces: 312538)	A5			$ 7.15
25	313915		Cover, Thread	A5	Appelez-nous	-
