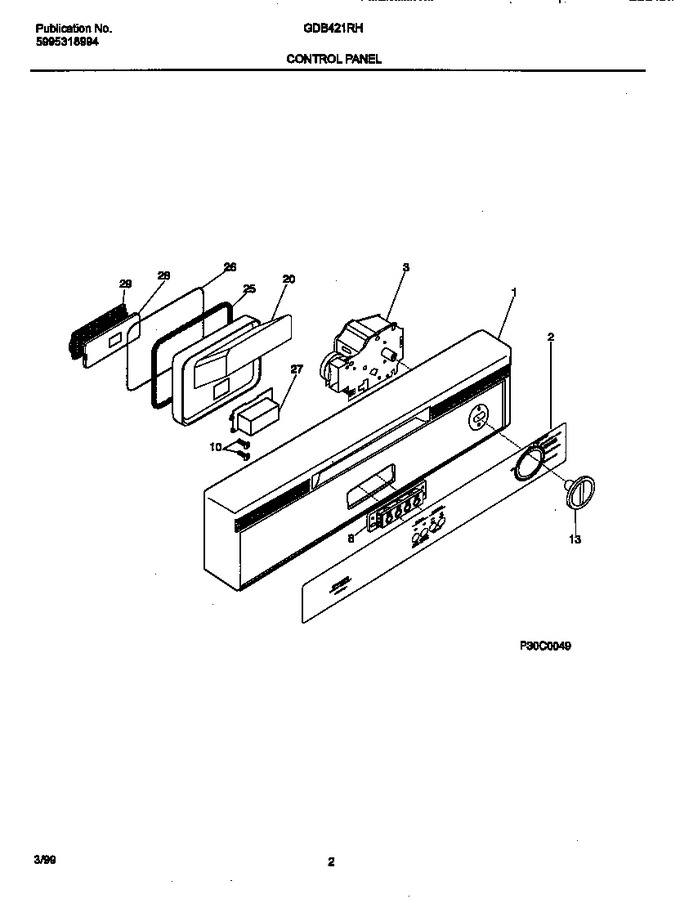

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222703		Panel-control		Appelez-nous	-
2	154356903		Insert-control Pnl,black		Appelez-nous	-
3	154328901		Timer		Appelez-nous	-
8	154215101		Switch-selector, 4b Tap Touch		Appelez-nous	-
10	5300809055		Screw, Cr Truss S.s., 8 .438				$ 1.21
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*07720	154131203		Shield-timer		Appelez-nous	-
*07721	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
*07722	154248601		Shield,switch		Appelez-nous	-
*07723	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*07724	154230403		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
